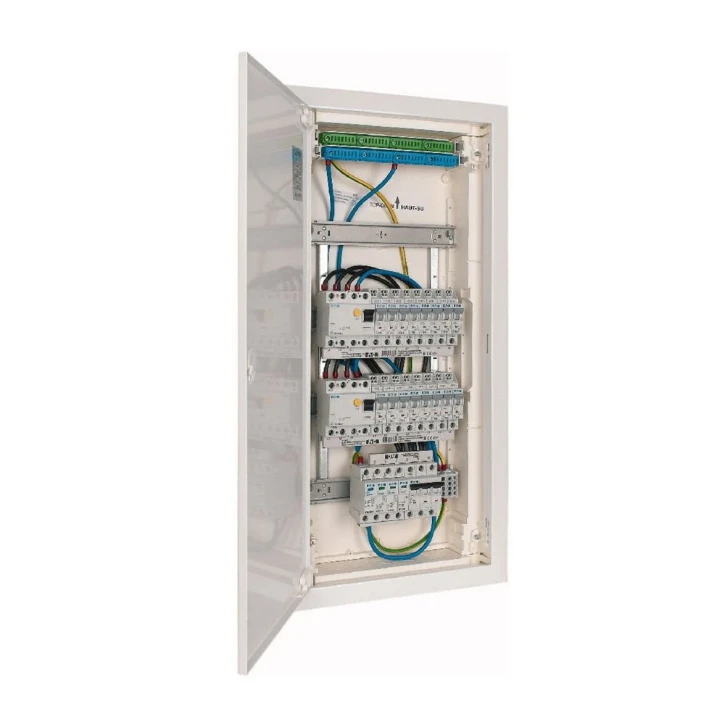

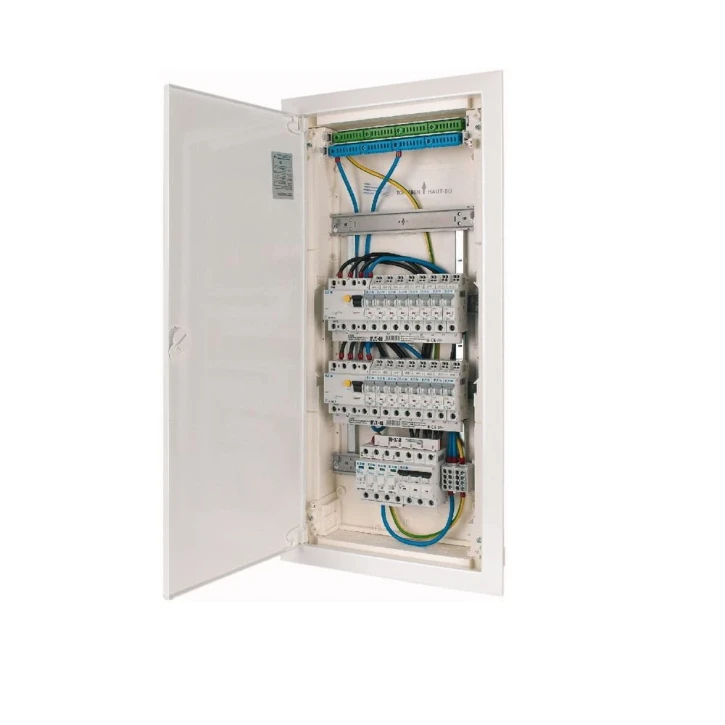

Bestückter Kleinverteiler, 4-reihig, Stahlblechtür flach
- 6272-5357
- |
- 194711
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Bestückter Kleinverteiler, 4-reihig, Stahlblechtür flach
Bestückter Kleinverteiler, 4-reihig, Stahlblechtür flach
Ordercode YESSS
6272-5357
Product code
194711
EAN code
9010238060500
Product group
Small distribution board equipped
Brand
Eaton
Serie
None
Type
KLV-PW-48-1PXL-1SPD-2PXF-16PLI
Product description
Bestückter vorverdrahteter und geprüfter Kleinverteiler KLV, mit 1x PXL Leistungsschalter 40 A; 1x SPCT2 TVSS; 2x PXF Fehlerstromschutzschalter; 16x PLI Leitungsschutzschalter (MCB) 16 A; durchgängige Steckklemmtechnik für alle Abgangsstromkreise; Schutzklasse II, Frontabdeckung plombierbar; Türdrehriegel optional austauschbar durch Sicherheitsschließung; umfangreiches Zubehörsortiment; Libelle 3D-Putzausgleich für schnelle und saubere Montage; inklusive Maueranker Normen: Kombination gemäß IEC/EN 60670-24, Gehäuse entsprechend DIN 43871, IEC/EN 62208, EN61439-3.
Product specifications
Mounting method
Hollow wall
Number of phases
3
Protection
Miniature-/earth leakage circuit breaker
Total number of groups
0
Number of direct groups
2
Number of light groups
0
Degree of protection (IP)
IP30
Number of groups behind earth leakage switch
2
Number of earth leakage circuit breakers
0
Number of earth leakage switches 30 mA
2
Number of earth leakage switches 300 mA
0
Number of poles main switch
3
Main switch rated current
32 A
Cooker group
None
Cooker group suitable as power current group
No
With socket outlet
No
With bell transformer
No
Overvoltage protection
Yes
Housing material
Plastic
Height
714 mm
Width
359 mm
Depth
96.5 mm
Width in number of modular spacings
12
Extension possible
No
With transparent cover
No
Lockable
No
Number of rows
4
Number of single-phase miniature circuit breakers (MCB)
16
Number of three-phase miniature circuit breakers (MCB)
1
Release characteristic
B
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Number of arc fault detection devices AFDD
0
Protection main switch
Yes
Protection incoming RCD
Yes
Protection high integrity
Yes
Protection split load
Yes
Protection dual RCD
Yes
Number of outgoing ways
16
Suitable for data
No
Type of overvoltage protection device
Type 2
With meter
No
Built-in height
45 mm
Built-in width
251 mm
Type of covering
Door
Type of closure
Other
Colour
White
RAL-number
9016
Outgoing connections with connectors for plug-in building installation
No
Number of earth leakage circuit breakers/AFDD
0
With N-disconnect slide
No
Connection type
Push-in clamp
