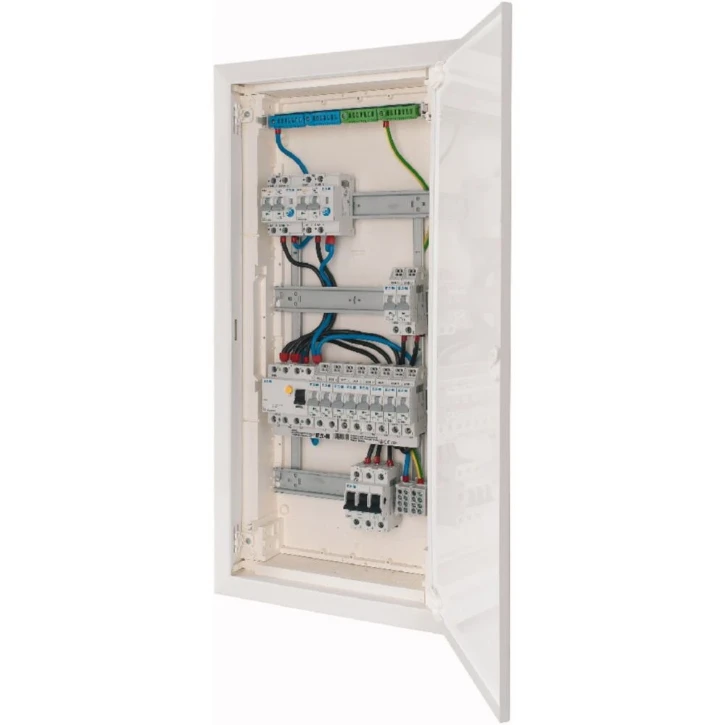

Bestückter Hohlwand-Kleinverteiler, 4-reihig, Stahlblechtür flach

  • 5713-7269
  • |
  • 191062
0 piece in stock
Login to order
Don’t have an account? Request account
  • Products Over 6.000 products in stock
  • Order before 17:00 and receive your order the next working day!
  • Need help? Call --- --- or contact us via email at [email protected]

General information

Bestückter Hohlwand-Kleinverteiler, 4-reihig, Stahlblechtür flach Bestückter Hohlwand-Kleinverteiler, 4-reihig, Stahlblechtür flach
Ordercode YESSS
5713-7269
Product code
191062
EAN code
4015081915576
Product group
Small distribution board equipped
Brand
Eaton
Serie
None
Type
KLV-48HWP-F-2AFDD-1PXF-10PLI-1IS

Product description

Bestückter, vorverdrahteter und getesteter Hohlwand 4-reihiger Kleinverteiler KLV, mit 2 AFDD Störlichtbogenerkennungsgerät, 1 Fehlerstromschutzschalter PXF, 10 Leitungsschutzschalter (MCB) PLI und 1 IS Hauptschalter, kontinuierliche Aufsteck-Technologie für alle Abgangsstromkreise, Schutzklasse II, Frontabdeckung plombierbar, Türdrehriegel optional austauschbar durch Sicherheitsschließung, umfangreiches Zubehörsortiment, Libelle 3D-Putzausgleich für schnelle und saubere Montage, Normen: Kombination gemäß IEC / EN 60670-24, Gehäuse gemäß DIN 43871, IEC / EN 62208, EN61439-3

Product specifications

Mounting method
Hollow wall
Number of phases
3
Protection
Miniature-/earth leakage circuit breaker
Total number of groups
10
Number of direct groups
1
Number of light groups
1
Degree of protection (IP)
IP30
Number of groups behind earth leakage switch
10
Number of earth leakage circuit breakers
0
Number of earth leakage switches 30 mA
1
Number of earth leakage switches 300 mA
0
Number of poles main switch
3
Main switch rated current
50 A
Cooker group
None
Cooker group suitable as power current group
No
With socket outlet
No
With bell transformer
No
Overvoltage protection
No
Housing material
Plastic
Height
715 mm
Width
360 mm
Depth
100 mm
Width in number of modular spacings
12
Extension possible
No
With transparent cover
No
Built-in depth
0 - 0 mm
Lockable
No
Number of rows
4
Number of single-phase miniature circuit breakers (MCB)
10
Number of three-phase miniature circuit breakers (MCB)
0
Release characteristic
B
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Number of arc fault detection devices AFDD
2
Protection main switch
Yes
Protection incoming RCD
Yes
Protection high integrity
Yes
Protection split load
Yes
Protection dual RCD
Yes
Number of outgoing ways
12
Suitable for data
No
With meter
No
Built-in height
45 mm
Built-in width
251 mm
Type of covering
Door
Type of closure
Other
Colour
White
RAL-number
9016
Power consumption
0 W
Outgoing connections with connectors for plug-in building installation
No
Number of earth leakage circuit breakers/AFDD
2
With N-disconnect slide
No
Connection type
Push-in clamp
