Small distribution board equipped Eaton None
Add to selection
General information
Ordercode YESSS
5713-7266
Product code
189575
EAN code
4015081874606
Product group
Small distribution board equipped
Brand
Eaton
Serie
None
Type
KLV-36UPP-F-2PXF-16PLI

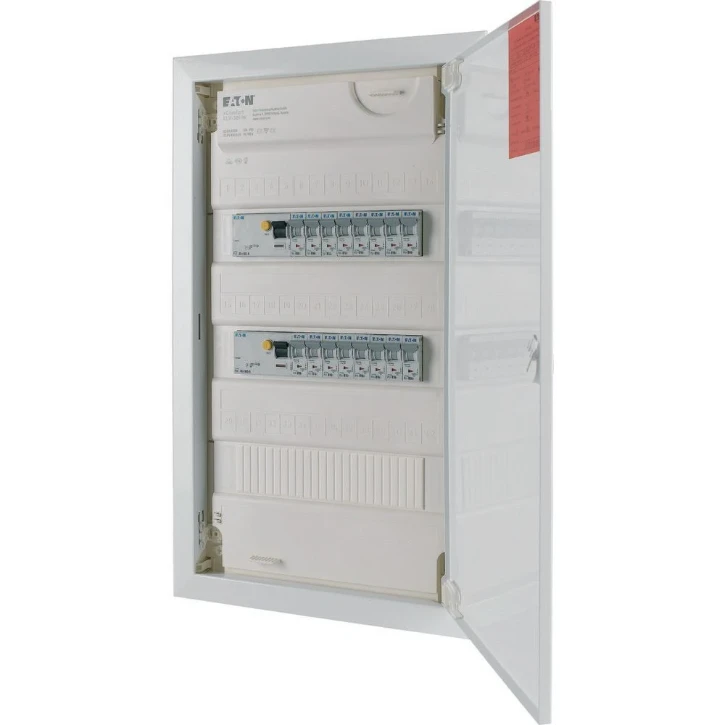

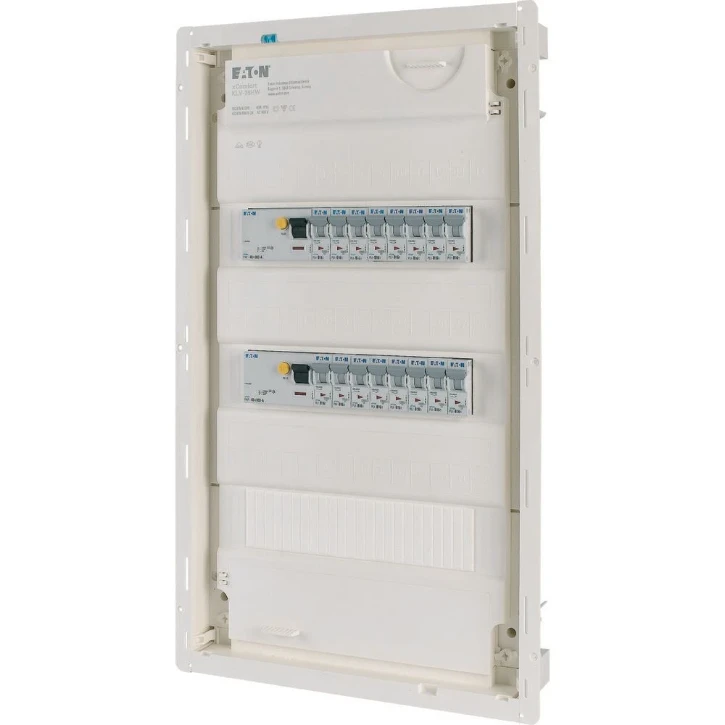

Bestückter Unterputz-Kleinverteiler, 3-reihig, Stahlblechtür flach
Bestückter Unterputz-Kleinverteiler, 3-reihig, Stahlblechtür flach
Product description
Bestückter vorverdrahteter und geprüfter Unterputz-Kleinverteiler KLV, mit 2x Fi-Schutzschalter PXF; 16x Leitungsschutzschalter PLI; durchgängige Steckklemmtechnik für alle Abgangsstromkreise; Schutzklasse II, Frontabdeckung plombierbar; Türdrehriegel optional austauschbar durch Sicherheitsschließung; umfangreiches Zubehörsortiment; Libelle 3D-Putzausgleich für schnelle und saubere Montage; Normen: Kombination entsprechend IEC/EN 60670-24, Gehäuse entsprechend DIN 43871, IEC/EN 62208, EN61439-3
Product specifications
Mounting method
Flush-mounted
Number of phases
3
Protection
Miniature-/earth leakage circuit breaker
Total number of groups
16
Number of direct groups
2
Number of light groups
2
Degree of protection (IP)
IP30
Number of groups behind earth leakage switch
16
Number of earth leakage circuit breakers
0
Number of earth leakage switches 30 mA
2
Number of earth leakage switches 300 mA
0
Number of poles main switch
0
Main switch rated current
0 A
Cooker group
None
Cooker group suitable as power current group
No
With socket outlet
No
With bell transformer
No
Overvoltage protection
No
Housing material
Plastic
Height
590 mm
Width
360 mm
Depth
100 mm
Width in number of modular spacings
12
Extension possible
Yes
With transparent cover
No
Built-in depth
0 - 0 mm
Lockable
No
Number of rows
3
Number of single-phase miniature circuit breakers (MCB)
16
Number of three-phase miniature circuit breakers (MCB)
0
Release characteristic
B
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Number of arc fault detection devices AFDD
0
Protection main switch
No
Protection incoming RCD
Yes
Protection high integrity
Yes
Protection split load
Yes
Protection dual RCD
Yes
Number of outgoing ways
16
Suitable for data
No
With meter
No
Built-in height
45 mm
Built-in width
251 mm
Type of covering
Door
Type of closure
Other
Colour
White
RAL-number
9016
Power consumption
0 W
