Charging device for electric vehicles Eaton None
Add to selection
General information
Ordercode YESSS
7587-9827
Product code
GMB2203BAAA00A00
EAN code
03553340301841
Product group
Charging device for electric vehicles
Brand
Eaton
Serie
None
Type
GMB 3.7-22kW 5m T2C MID
GMB 3.7-22kW 5m T2C MID
GMB 3.7-22kW 5m T2C MID
Product description

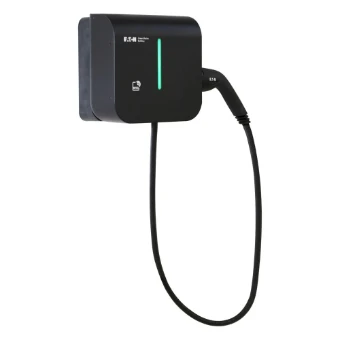

Eaton Green Motion Building, EV charging station, Online, Adjustable output power 3,7 kW to 22 kW (single-phase or 3-phase), 5 m Type 2 cable, RFID, MID energy meter
Product specifications
Installation side connection model
3-phase
Number of charging units
1
Max. power per charging point
22 kW
Nominal connection power
22 kW
Width
263 mm
Height
291 mm
Depth
116 mm
Number of vehicle connectors Type 1
0
Number of vehicle connectors Type 1 CCS
0
Number of vehicle connectors Type 2
1
Number of vehicle connectors Type 2 CCS
0
Number of socket outlets Type 2
1
Number of vehicle connectors GB AC
0
Number of vehicle connectors GB DC
0
Number of socket outlets GB
0
Number of socket outlets Type 3
0
Number of vehicle connectors CHAdeMO
0
Number of CEE socket outlets (IEC 60309)
0
Number of household socket outlets
0
With house connection box
Yes
Number of earth leakage circuit breakers type A
0
Number of earth leakage circuit breakers type B
0
With miniature circuit breaker (MCB)
No
With energy meter
Yes
Housing material
Plastic
Degree of protection (IP)
IP54
Impact strength
IK08
Length of charging cable
5 m
With display
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Frequency
50 Hz
Charging cable permanently lockable at charging device
No
DC residual current detection
No
Contactor welding detection
No
Network-enabled as a master
No
Network-enabled as an extender
No
Networkable via LAN
No
Networkable via Wi-Fi
No
With key switch
No
With built-in RFID card reader
No
NFC (Near Field Communication)
No
Static load management integrated
No
Suitable for dynamic load management
No
Plug and charge (ISO 15118)
No
Operation and configuration by app
No
Export of charging logs
No
Backend included
No
With MID compliant energy meter
No
Calibration law compliant
No
Product information
