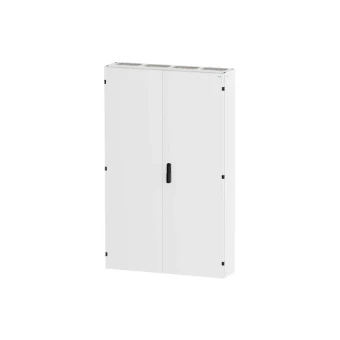

Floor-standing distribution board EMC2 empty, IP55, protection class I
Add to selection
General information
Ordercode YESSS
7587-9751
Product code
EP-501332
EAN code
09010653042457
Product group
Enclosure/cabinet (empty)
Brand
Eaton
Serie
None
Type
EMC2-H411/55-W
Floor-standing distribution board EMC2 empty, IP55, protection class I
Floor-standing distribution board EMC2 empty, IP55, protection class I
STOCK
IN STOCK
0
piece
Product description
Floor-standing distribution board EP Modular Class 2 (EMC2) empty, IP55, protection class II, HxWxD=1700x1050x270mm, white (RAL 9016), powder-coated sheet metal chassis, total insulated internally to meet class II criterion, prepared for F3A-flanges top/bottom, door with external hinges, 180° opening angle, standard delivery with rotary lever, door gasket foamed all around, intended to be used with EP installation system for interior equipment;
Product specifications
Width
1050 mm
Height
1700 mm
Depth
270 mm
Surface finishing
Powder coating
Material quality
Other
Degree of protection (IP)
IP55
Material
Steel
Colour
White
RAL-number
9016
With mounting plate
No
Mounting plate depth-adjustable
No
Number of locks
0
Suitable for wall built-in
No
Pole fastening
No
Number of doors
2
Pitched roof
No
Suitable for metrical mounting
No
Impact strength
IK10
EMC-version
Yes
With glazed door
No
With ventilation door
No
With rear door
No
Degree of protection (NEMA)
Other
Freestanding
No
Floor standing wall model
Yes
Suitable for wall mounting
Yes
Corner model
No
Intermediate mounting
No
Couplable
Yes
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
203 W
Max. permitted load of the enclosure according to IEC 62208
2000 N
Max. permitted load of the door(s) according to IEC 62208
100 N
Max. permitted load of the mounting plate according to IEC 62208
880 N
With door
Yes
With cover
No
Transparent cover
No
Number of connector holes
0
Pre-stamping
No
