Switch disconnector (AC) Eaton None
Add to selection
General information
Ordercode YESSS
4866-4510
Product code
6098943
EAN code
08711426532731
Product group
Switch disconnector (AC)
Brand
Eaton
Serie
None
Type
DDC-400/2

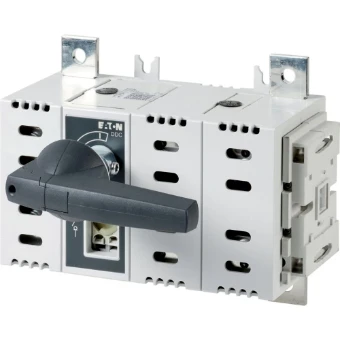

DC switch disconnector, 400 A, 2 pole, 2 N/O, 2
DC switch disconnector, 400 A, 2 pole, 2 N/O, 2 N/C, with grey knob, s
Product description
DC switch disconnector, Product range: DC switch-disconnector, Main switch, maintenance switch, Part group reference: DDC, with grey knob, Information about equipment supplied: auxiliary contact fitted by user., 2 pole, Degree of Protection: IP20, Design: service distribution board mounting, Rated uninterrupted current: Iu = 400 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
Product specifications
Rated permanent current Iu
400 A
Number of auxiliary contacts as normally closed contact
2
Number of auxiliary contacts as normally open contact
2
Version as reversing switch
No
Rated operation power at AC-23, 400 V
0 kW
Number of switches
1
Number of poles
2
Version as main switch
Yes
Rated operating voltage
1000 - 1000 V
Version as maintenance-/service switch
Yes
Version as safety switch
No
Rated permanent current at AC-21, 400 V
0 A
Version as emergency stop installation
No
Rated permanent current at AC-23, 400 V
0 A
Rated operation power at AC-3, 400 V
0 kW
Max. rated operation voltage Ue AC
1000 V
Rated short-time withstand current lcw
15 kA
Switching power at 400 V
0 kW
Conditioned rated short-circuit current Iq
0 kA
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Long rotary handle
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Colour control element
Grey
Degree of protection (NEMA)
Other
With pre-assembled cabling
No
Width
127 mm
Height
129 mm
Depth
240 mm
