General information

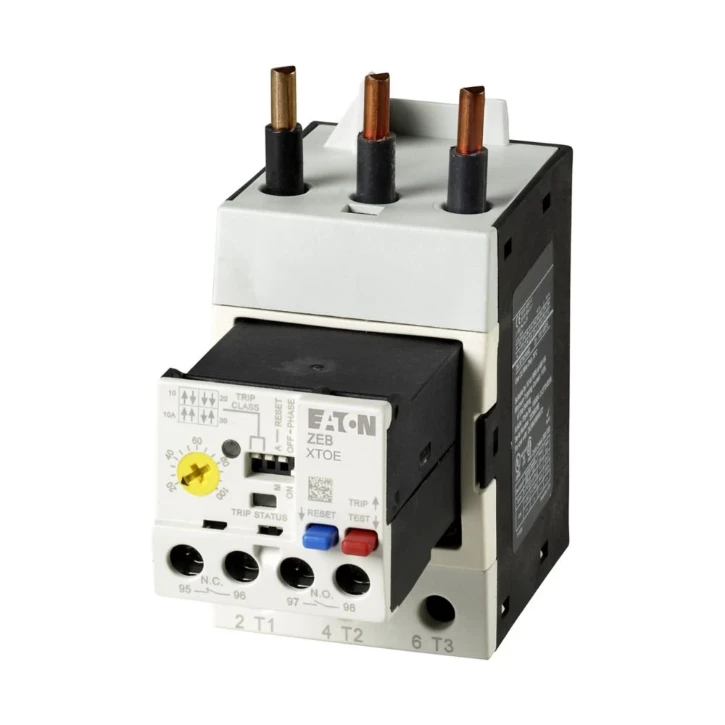

Overload relay, Direct mounting, Earth-fault protection: none, Ir= 20
Overload relay, Direct mounting, Earth-fault protection: none, Ir= 20
Ordercode YESSS
1617-1945
Product code
136504
EAN code
4015081332847
Product group
Electronic overload relay
Brand
Eaton
Serie
Moeller series
Type
ZEB65-100
Product description
Overload relay, Product range: Electronic overload relays ZEB, Phase-failure sensitivity: IEC/EN 60947, VDE 0660 Part 102, Description: Test/off button, Reset pushbutton, Manual/auto reset selectable, Protection with heavy starting duty (Class 10A-30), Mounting type: Direct mounting, Auxiliary contacts N/O = Normally open: 1 N/O, Auxiliary contacts N/C = Normally closed: 1 N/C, For use with: DILM40, DILM50, DILM65, DILM72, DIULM40, DIULM50, DIULM65, SDAINLM70, SDAINLM90, SDAINLM115, Standards: IEC/EN 60947, VDE 0660, UL, CSA, Degree of Protection: IP20
Product specifications
Adjustable current range
20 - 100 A
Mounting method
Direct attachment
Number of auxiliary contacts as normally closed contact
1
Release class
Adjustable
Rated control supply voltage DC
0 - 0 V
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Rated control supply voltage AC 50 Hz
0 - 0 V
Rated control supply voltage AC 60 Hz
0 - 0 V
Reset function automatic
Yes
Reset function input
No
Reset function push-button
Yes
External power supply required
No
Voltage type (operating voltage)
AC
Operating voltage AC 50 Hz
230 - 690 V
Operating voltage AC 60 Hz
230 - 690 V
Operating voltage DC
0 - 0 V

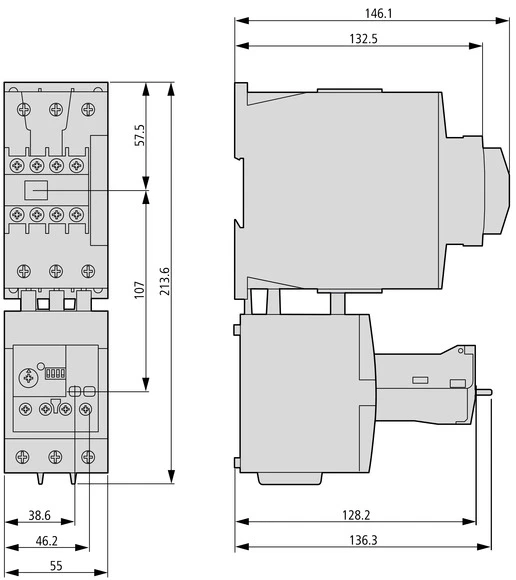

Width
56 mm
Height
116 mm
Depth
136.3 mm
