General information

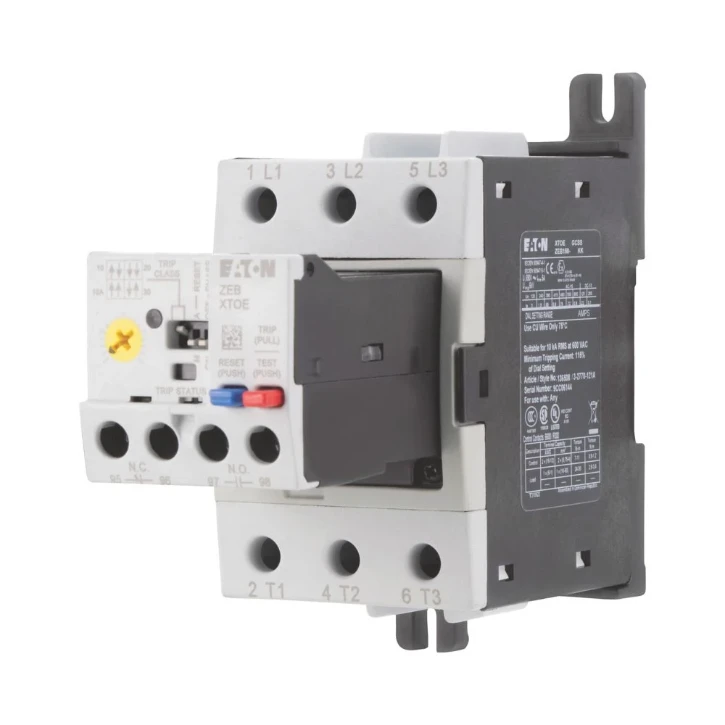

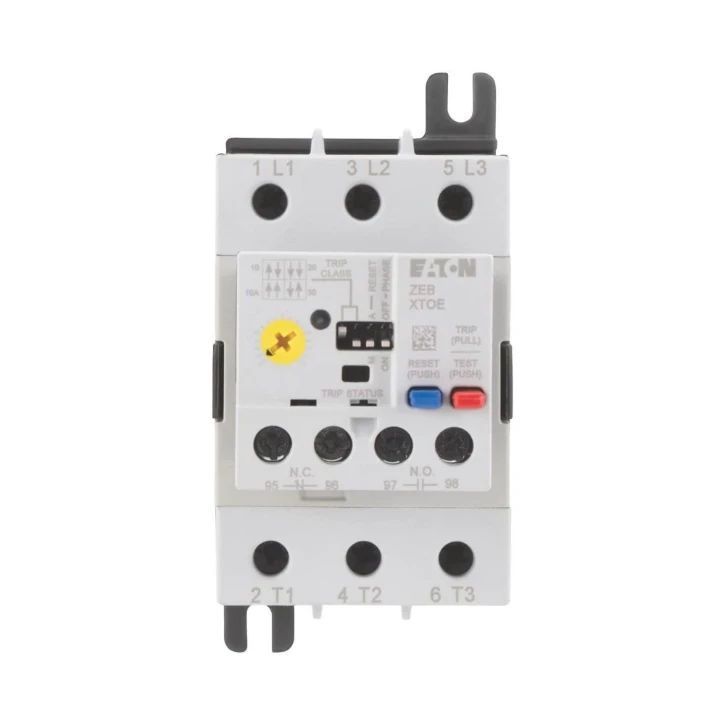

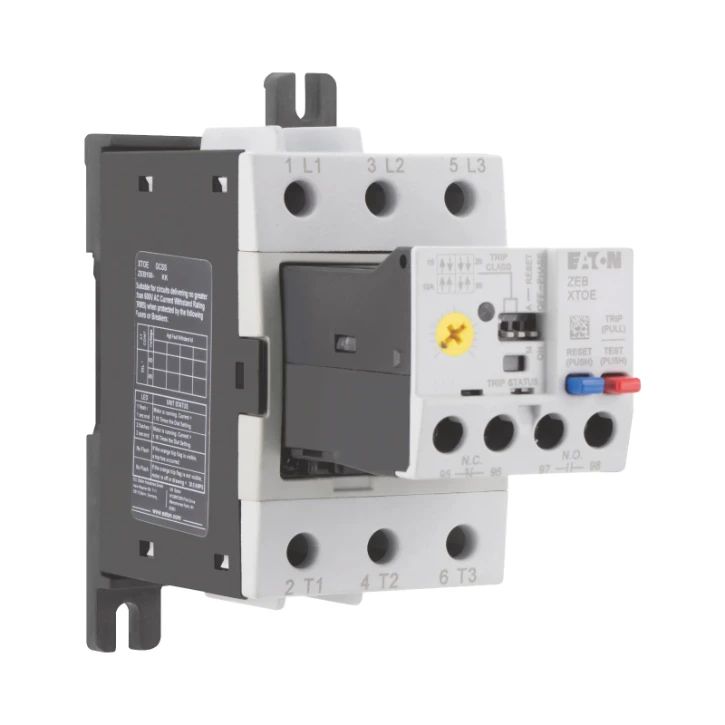

Overload relay, Separate mounting, Earth-fault protection: none, Ir= 2
Overload relay, Separate mounting, Earth-fault protection: none, Ir= 2
Ordercode YESSS
1617-1888
Product code
136508
EAN code
4015081332885
Product group
Electronic overload relay
Brand
Eaton
Serie
Moeller series
Type
ZEB150-100/KK
Product description
Overload relay, Product range: Electronic overload relays ZEB, Phase-failure sensitivity: IEC/EN 60947, VDE 0660 Part 102, Description: Test/off button, Reset pushbutton, Manual/auto reset selectable, Protection with heavy starting duty (Class 10A-30), Mounting type: Separate mounting, Auxiliary contacts N/O = Normally open: 1 N/O, Auxiliary contacts N/C = Normally closed: 1 N/C, For use with: DILM80, DILM95, DILM115, DILM150, DIULM80, DIULM95, DIULM115, DIULM150, SDAINLM140, SDAINLM165, SDAINLM200, SDAINLM260, Standards: IEC/EN 60947, VDE 0660, UL, CSA, Degree of Protection: IP20
Product specifications
Adjustable current range
20 - 100 A
Mounting method
Separate positioning
Number of auxiliary contacts as normally closed contact
1
Release class
Adjustable
Rated control supply voltage DC
0 - 0 V
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Rated control supply voltage AC 50 Hz
0 - 0 V
Rated control supply voltage AC 60 Hz
0 - 0 V
Reset function automatic
Yes
Reset function input
No
Reset function push-button
Yes
External power supply required
No
Voltage type (operating voltage)
AC
Operating voltage AC 50 Hz
230 - 690 V
Operating voltage AC 60 Hz
230 - 690 V
Operating voltage DC
0 - 0 V

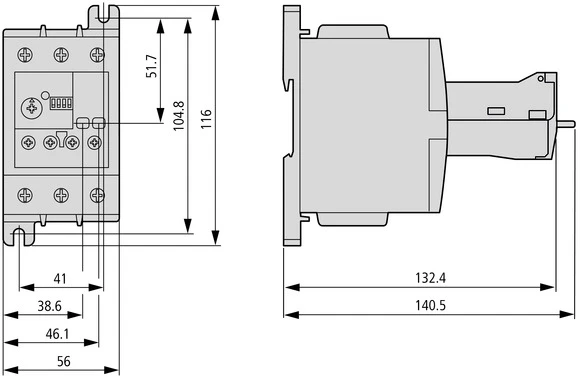

Width
56 mm
Height
120 mm
Depth
140.5 mm
