Switch disconnector (AC) Eaton Moeller series
Add to selection
General information
Ordercode YESSS
0308-0122
Product code
081438
EAN code
04015080814382
Product group
Switch disconnector (AC)
Brand
Eaton
Serie
Moeller series
Type
P1-32/EA/SVB

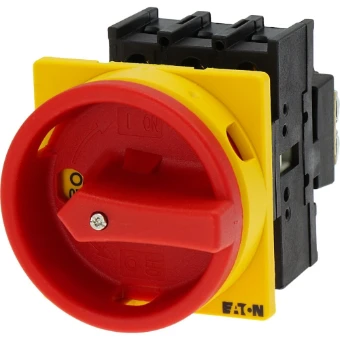

Main switch, P1, 32 A, flush mounting, 3 pole, Emergency
Main switch, P1, 32 A, flush mounting, 3 pole, Emergency switching off
Product description
Main switch, P1, Rated uninterrupted current (Iu): 32 A, Functions: Emergency switching off function, Interlockable, Fitted with: Red rotary handle and yellow locking ring, Mounting method: Flush mounting, Number of poles: Three-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 1
Product specifications
Rated permanent current Iu
32 A
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Version as reversing switch
No
Rated operation power at AC-23, 400 V
15 kW
Number of switches
1
Number of poles
3
Version as main switch
Yes
Rated operating voltage
690 - 690 V
Version as maintenance-/service switch
Yes
Version as safety switch
No
Rated permanent current at AC-21, 400 V
32 A
Version as emergency stop installation
Yes
Rated permanent current at AC-23, 400 V
32 A
Rated operation power at AC-3, 400 V
13 kW
Max. rated operation voltage Ue AC
690 V
Rated short-time withstand current lcw
0.64 kA
Switching power at 400 V
15 kW
Conditioned rated short-circuit current Iq
80 kA
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Door coupling rotary drive
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Colour control element
Red
Degree of protection (NEMA)
1
With pre-assembled cabling
No
Width
49 mm
Height
70 mm
Depth
120 mm
