Auxiliary contact block Eaton
Add to selection
General information
Ordercode YESSS
0307-1983
Product code
216382
EAN code
04015082163822
Product group
Auxiliary contact block
Brand
Eaton

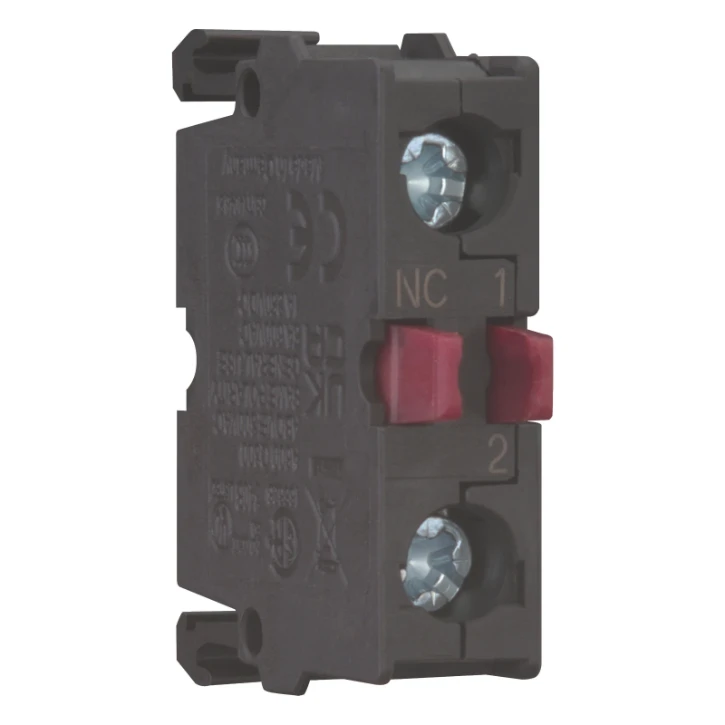

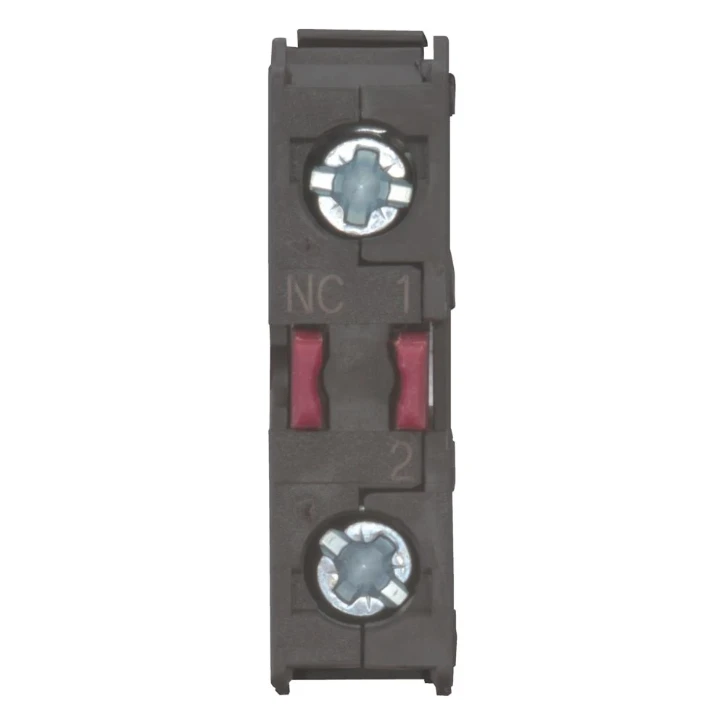

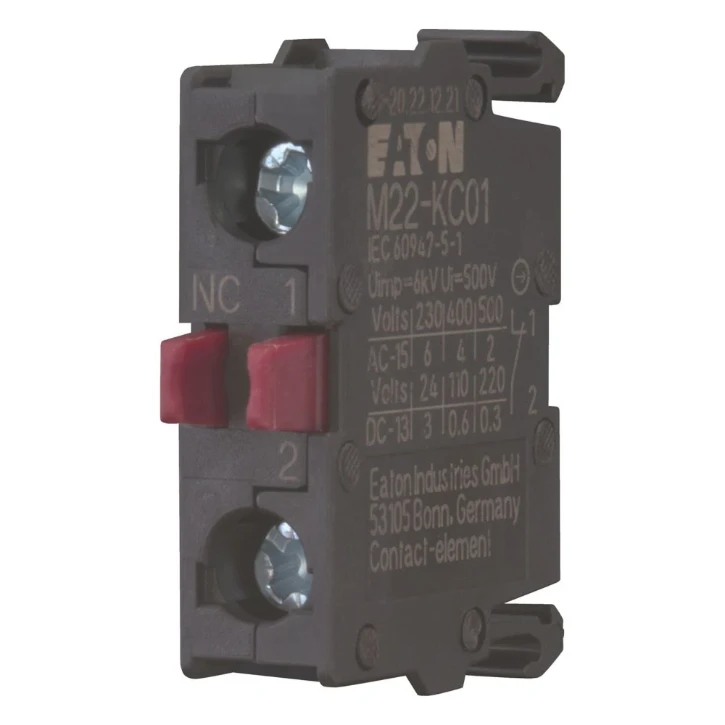

Contact element, Screw terminals, Base fixing, 1 NC, 24 V
Contact element, Screw terminals, Base fixing, 1 NC, 24 V 3 A, 220 V 2
Product description
Contact element, Connection technique: Screw terminals, Fixing: Base fixing, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Degree of Protection: IP20, Connection to SmartWire-DT: no, Connection type: Single contact, Standards: IEC 60947-5-1
Product specifications
Mounting method
Floor fastening
Number of contacts as change-over contact
0
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
1
Number of fault-signal switches
0
Type of electric connection
Screw connection
Model
Top mounting
Lamp holder
None
Rated operation current Ie at AC-15, 230 V
6 A
