Push button, complete Eaton
Add to selection
General information
Ordercode YESSS
0307-1440
Product code
216512
EAN code
04015082165123
Product group
Push button, complete
Brand
Eaton

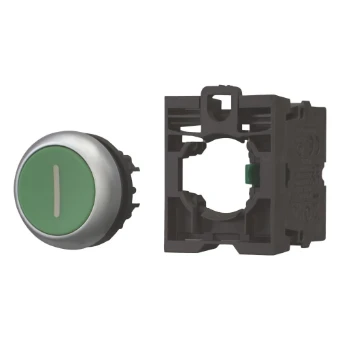

Pushbutton, RMQ-Titan, Flat, momentary, 1 N/O, green, inscribed, Bezel
Pushbutton, RMQ-Titan, Flat, momentary, 1 N/O, green, inscribed, Bezel
Product description
Pushbutton, RMQ-Titan, Complete unit, Design: Flat, momentary, Connection type: Screw connection, button plate: green, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: no, N/O = Normally open: 1 N/O, Front dimensions: 22 x 22, Standards: IEC/EN 60947, VDE 0660
Product specifications
Number of command positions
1
Spring-return
Yes
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Degree of protection (IP)
IP67/IP69K
Colour button
Green
Construction type lens
Round
Hole diameter
22.5 mm
Width opening
0 mm
Height opening
0 mm
Type of button
Flat
Suitable for illumination
No
Switching function latching
No
Supply voltage lamp
0 V
Number of contacts as change-over contact
0
Type of electric connection
Screw connection
With front ring
Yes
Material front ring
Plastic
Colour front ring
Titanium
Degree of protection (NEMA)
4X, 13
Transparent
No
