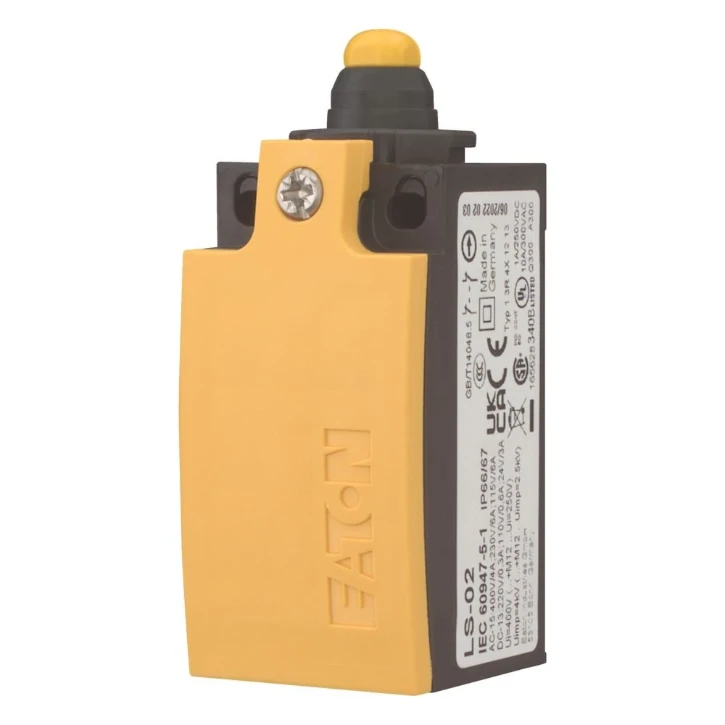

Position switch, Rounded plunger, Basic device, expandable, 2 NC, Scre
- 0306-9280
- |
- 106729
7
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Position switch, Rounded plunger, Basic device, expandable, 2 NC, Scre
Position switch, Rounded plunger, Basic device, expandable, 2 NC, Scre
Ordercode YESSS
0306-9280
Product code
106729
EAN code
4015081064960
Product group
End switch
Brand
Eaton
Serie
Moeller series
Type
LS-S02
Product description
Position switch, Basic function: Position switches, Safety position switches, Part group reference: LS(M)-…, Product range: Rounded plunger, Degree of Protection: IP66, IP67, Features: Basic device, expandable, Ambient temperature: -25 - +70 °C, Contacts N/C = Normally closed: 2 NC, Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Positive opening (ZW): yes, Color Enclosure covers: Yellow, Housing: Insulated material, Connection type: Screw terminal, Standards: IEC/EN 60947
Product specifications
Width sensor
31 mm
Diameter sensor
0 mm
Switching function
Slow-action switch
Output electronic
No
Gehäuse gemäß Norm
Other
Rated operation current Ie at AC-15, 24 V
6 A
Height of sensor
61 mm
Length of sensor
33.5 mm
Rated operation current Ie at AC-15, 125 V
6 A
Rated operation current Ie at AC-15, 230 V
6 A
Rated operation current Ie at DC-13, 24 V
3 A
Rated operation current Ie at DC-13, 125 V
0.8 A
Switching function latching
No
Rated operation current Ie at DC-13, 230 V
0.3 A
Forced opening
Yes
Number of safety auxiliary contacts
2
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
0
Number of contacts as change-over contact
0
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cuboid
Housing material
Plastic
Coating housing
Other
Type of control element
Plunger
Type of electric connection
Cable entry metrical
Alignment of the control element
Roller cam straight
With status indication
No
Suitable for safety functions
Yes
Explosion safety category for gas
None
Explosion safety category for dust
None
Ambient temperature during operating
-25 - 70 °C
Degree of protection (IP)
IP66/IP67
Degree of protection (NEMA)
Other
