Timer relay Eaton Moeller series
Add to selection
General information
Ordercode YESSS
0306-2977
Product code
262684
EAN code
04015082626846
Product group
Timer relay
Brand
Eaton
Serie
Moeller series
Type

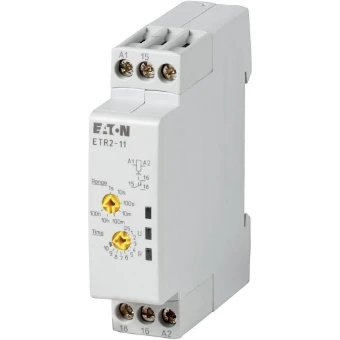

ETR2-11
Timing relay, 1W, 0.05s-100h, 24-240VAV 50/60Hz, 24-48VDC, on-delayed
Timing relay, 1W, 0.05s-100h, 24-240VAV 50/60Hz, 24-48VDC, on-delayed
Product description
ETR2 electronic timing relays, 17.5 mm wide, time range 0.05s-100h, 1 changeover contacts on-delayed
Product specifications
Rated control supply voltage AC 50 Hz
24 - 240 V
Voltage type for actuating
AC/DC
Remote operation possible
No
Function delay-on energization
Yes
Function delay on de-energization
No
Function floating contact on energization
No
Function floating contact on de-energization
No
Time range
0.05 - 360000 s
Number of outputs, undelayed, normally closed contact
0
Number of outputs, delayed, normally closed contact
0
Type of electric connection
Screw connection
Function star-delta
No
Function pulse shaping
No
Function flashing, starting with pause, fixed time
No
Function flashing, starting with pulse, fixed time
No
Clock function, starting with pause, variable
No
Clock function, starting with pulse, variable
No
Suitable as remote control
No
Pluggable on auxiliary contact block
No
Nominal current
3 A
Rated control supply voltage AC 60 Hz
24 - 240 V
Rated control supply voltage DC
24 - 48 V
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, change-over contact
0
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, change-over contact
1
Outputs, reversible delayed/undelayed
No
With semiconductor output
No
Width
17.5 mm
Suitable for DIN rail (top hat rail) mounting
Yes
Height
70 mm
Depth
63 mm
Complete with socket
No
Suitable for front mounting
No
Operating voltage AC 50 Hz
24 - 240 V
Operating voltage AC 60 Hz
24 - 240 V
Operating voltage DC
24 - 48 V
Voltage type (operating voltage)
AC/DC
Degree of protection (IP)
IP20
