General information

Contactor, 4 pole, 200 A, RAC 24: 24 V 50/60 Contactor, 4 pole, 200 A, RAC 24: 24 V 50/60 Hz, AC operation

Ordercode YESSS

0461-6971

Product code

109924

EAN code

4015081094905

Product group

Power contactor, AC switching

Brand

Eaton

Serie

Moeller series

Type

DILMP200(RAC24)

Product description

Contactor, Application: Contactors for 4 pole electric consumers, Contactors up to 200 A, 4 pole, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, Connection technique: Screw terminals, Number of poles: 4 pole, 380 V 400 V: Ie= 115 A, Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 200 A, enclosed: Ith= 160 A, Conventional free air thermal current, 1 pole open: Ith= 516 A, enclosed: Ith= 464 A, 220 V 230 V: P= 37 kW, 380 V 400 V: P= 55 kW, 660 V 690 V: P= 90 kW , Instructions: Contacts to EN 50 012., integrated suppressor circuit in actuating electronics, Voltage AC/DC: AC operation

Product specifications

Rated operation power at AC-3, 400 V

55 kW

Voltage type for actuating

Number of normally open contacts as main contact

Number of normally closed contacts as main contact

Number of auxiliary contacts as normally open contact

Number of auxiliary contacts as normally closed contact

Type of electrical connection of main circuit

Screw connection

Suitable for distribution board

Rated control supply voltage AC 50 Hz

24 - 24 V

Rated control supply voltage AC 60 Hz

24 - 24 V

Rated operation power NEMA

93 kW

Rated control supply voltage DC

0 - 0 V

Rated operation current Ie at AC-1, 400 V

200 A

Rated operation current Ie at AC-3, 400 V

115 A

Rated operation current Ie at AC-4, 400 V

136 A

Rated operation power at AC-4, 400 V

75 kW

Operating voltage AC 50 Hz

230 - 690 V

Operating voltage AC 60 Hz

230 - 690 V

Width

122 mm

Height

170 mm

Depth

160 mm

Manufacturer's website

Contactor, 4 pole, 200 A, RAC 24: 24 V 50/60

General information

Product description

Product specifications

Recommended products

Replacement coil, Tool-less plug connection, RAC 440: 380 - 440 V 50/6

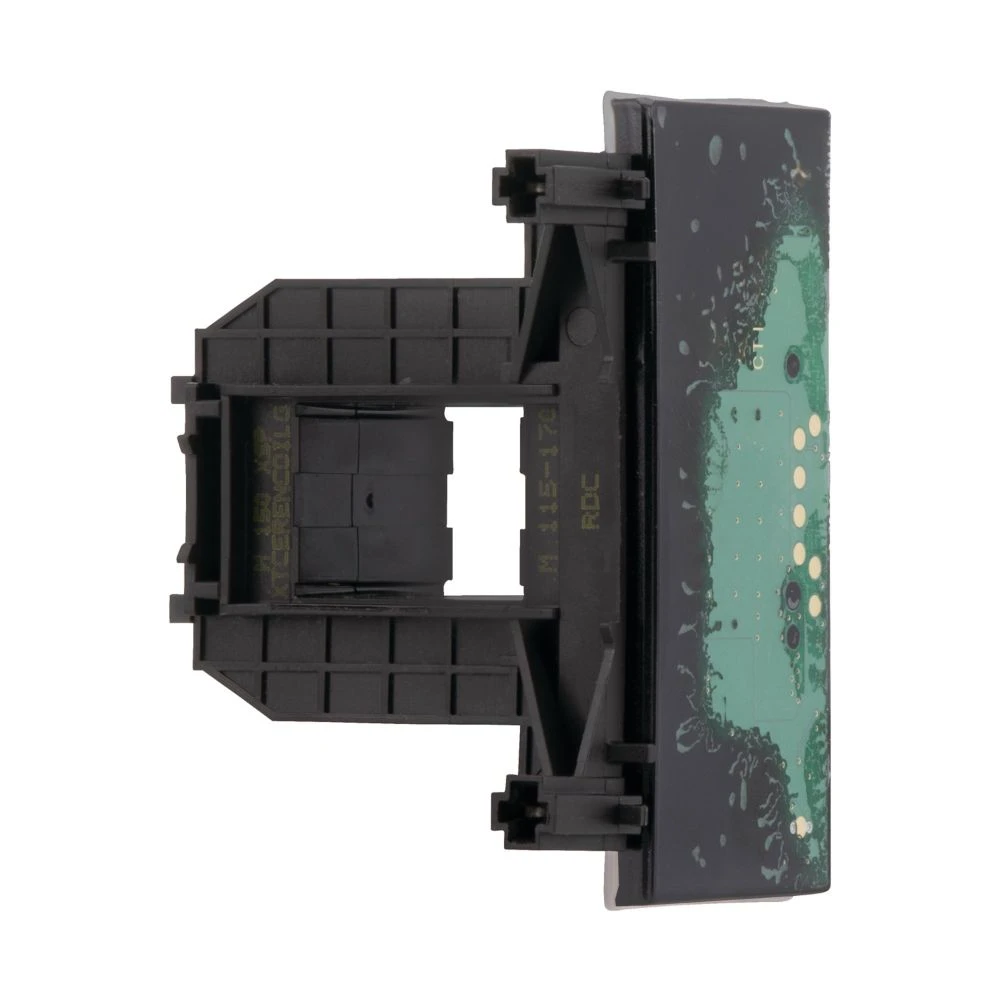

Replacement coil, Tool-less plug connection, RDC 24: 24 - 27 V DC, DC,
