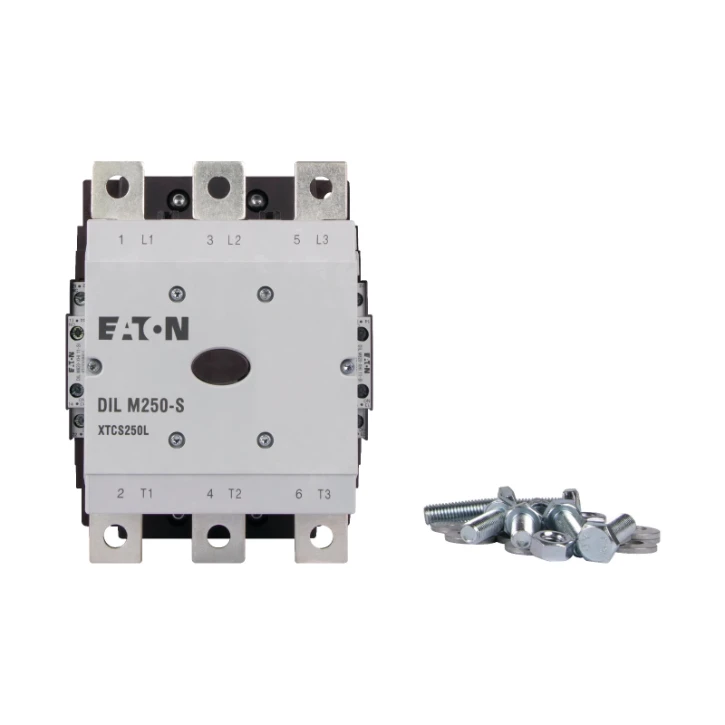

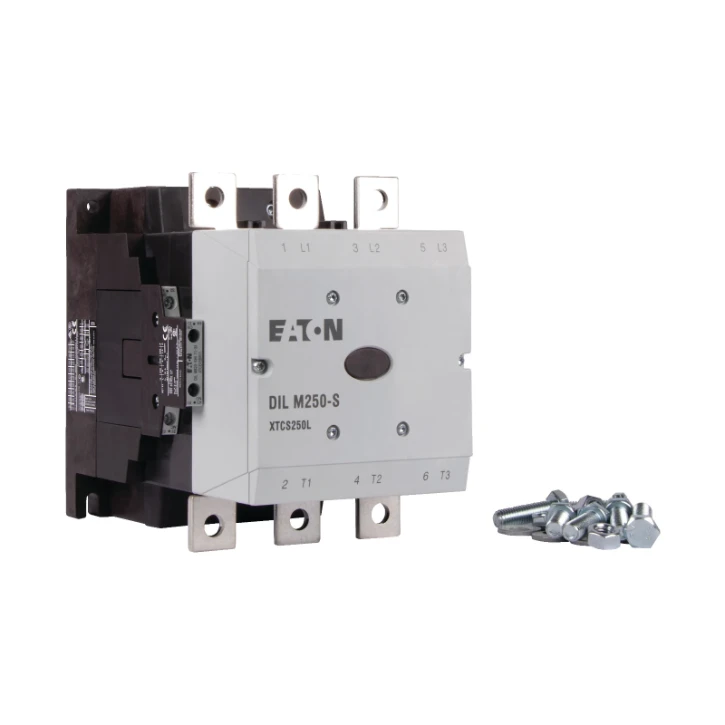

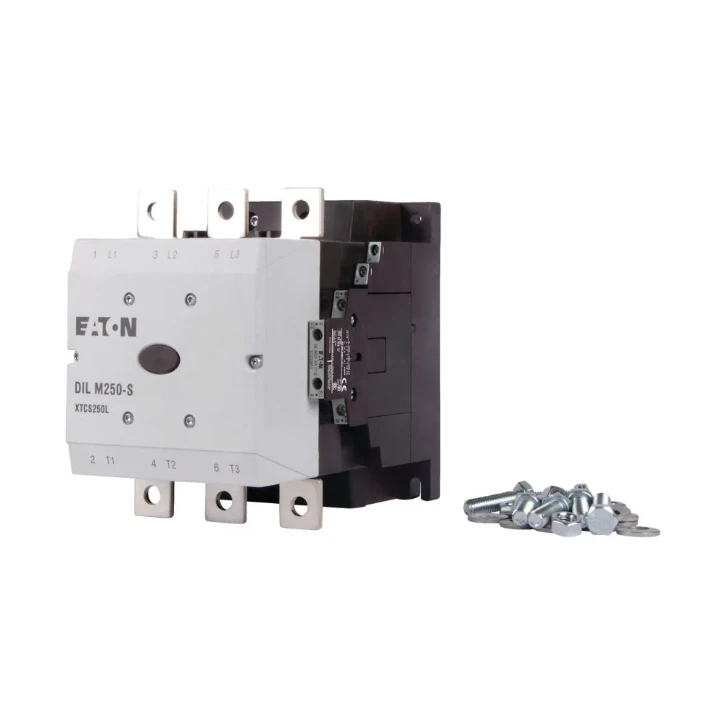

Contactor, 380 V 400 V 132 kW, 2 N/O, 2
- 0305-9464
- |
- 274189
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Product description
Contactor, Application: Contactors for Motors, Standard devices greater than 170 A, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw connection, Rated operational current AC-3 380 V 400 V: Ie= 250 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 430 A, enclosed: Ith= 300 A, Rated operational current AC-1 Conventional free air thermal current , 1 pole open: Ith= 875 A, enclosed: Ith= 750 A, Max. rating for three-phase motors, 50 - 60 Hz AC-3 220 V 230 V: P= 75 kW, 380 V 400 V: P= 132 kW, 660 V 690 V: P= 170 kW, Max. rating for three-phase motors, 50 - 60 Hz AC-4 220 V 230 V: P= 62 kW, 380 V 400 V: P= 110 kW, 660 V 690 V: P= 137 kW, Can be combined with auxiliary contact: DILM820-XHI…, Contacts N/O = Normally open: 2 N/O, Contacts N/C = Normally closed: 2 NC, Instructions: integrated suppressor circuit in actuating electronics, 660 V, 690 V or 1000 V: not directly reversing, Voltage AC/DC: AC operation
