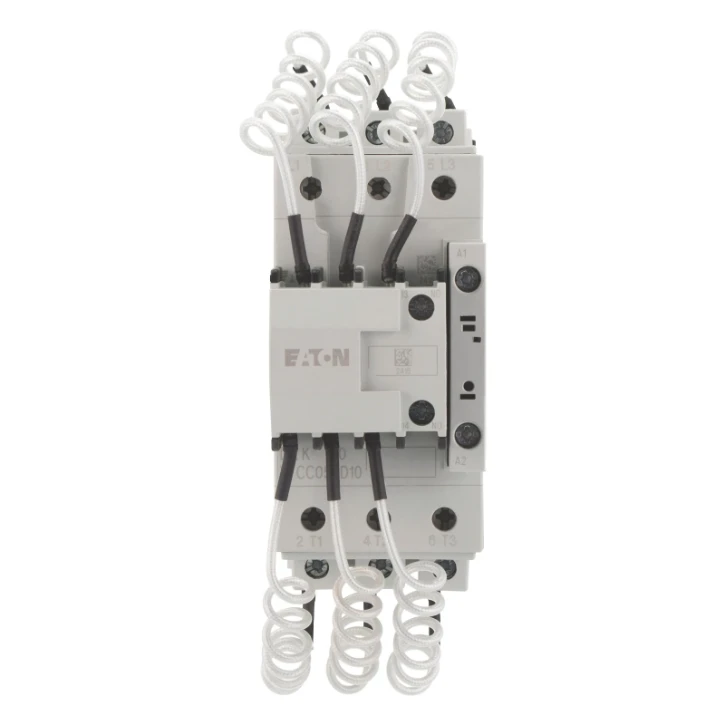

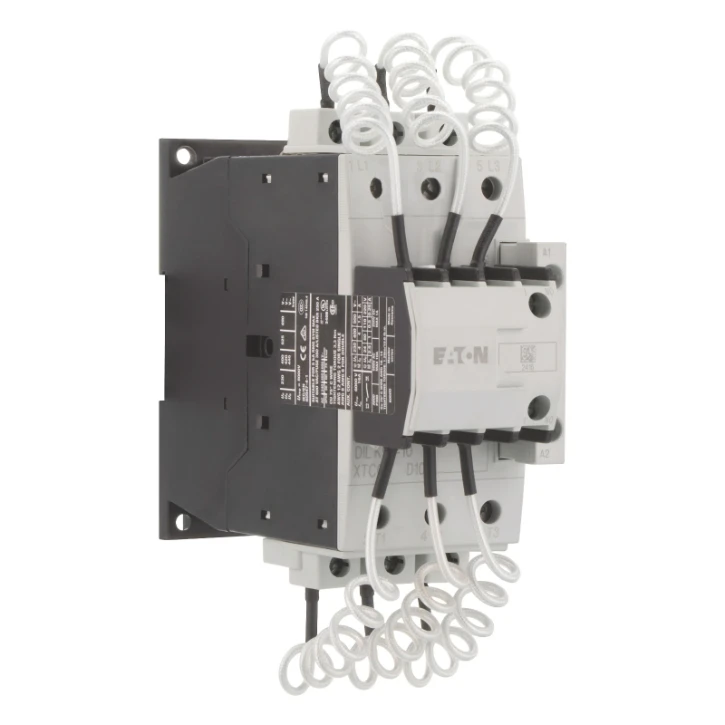

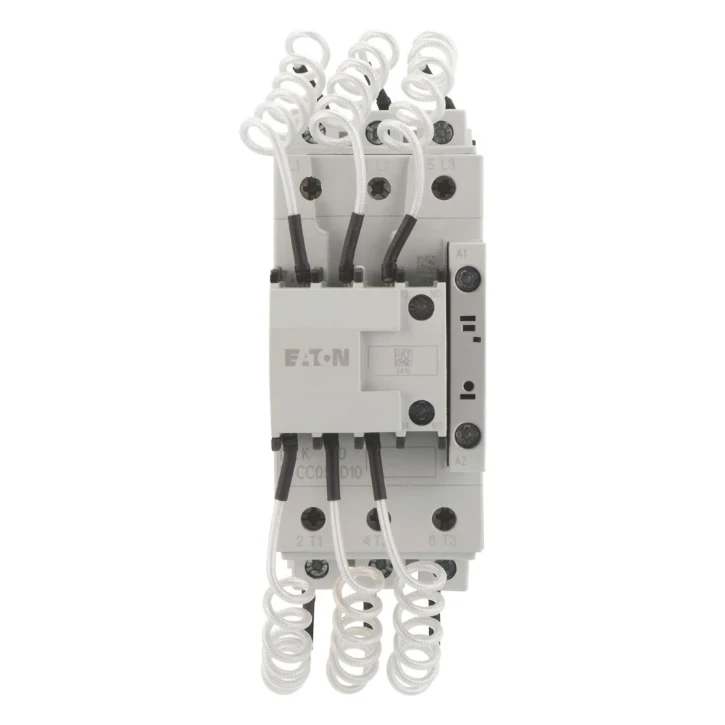

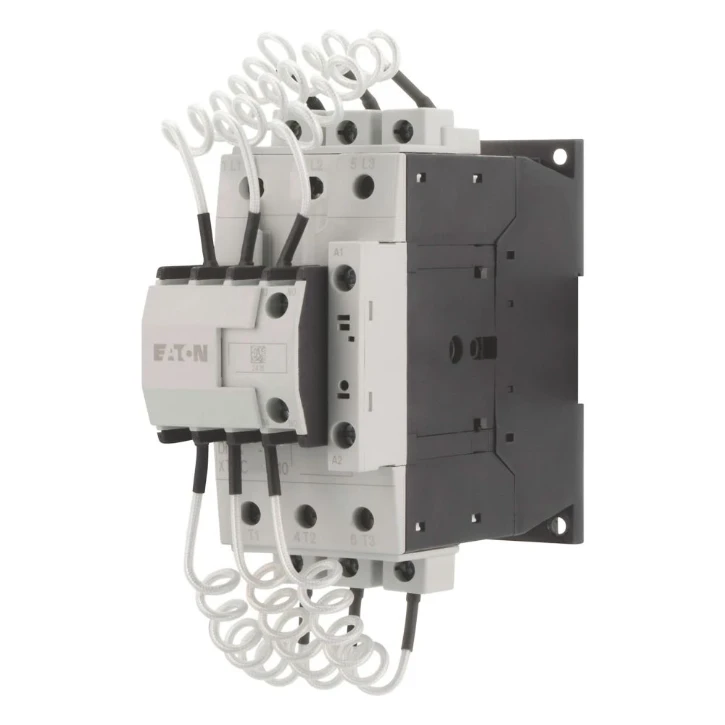

Contactor for capacitors, with series resistors, 50 kVAr, 230 V
- 0305-7412
- |
- 294076
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Contactor for capacitors, with series resistors, 50 kVAr, 230 V
Contactor for capacitors, with series resistors, 50 kVAr, 230 V 50 Hz,
Ordercode YESSS
0305-7412
Product code
294076
EAN code
4015082940768
Product group
Capacitor contactor
Brand
Eaton
Serie
Moeller series
Type
DILK50-10(230V50HZ,240V60HZ)
Product description
For switching in central compensation systems with 180-fold transient peaks. The capacitors are pre-charged via the early-make auxiliary contacts and the fitted wire resistors, thus reducing the inrush current.
Product specifications
Rated control supply voltage AC 50 Hz
230 - 230 V
Voltage type for actuating
AC
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
0
Rated reactive power at 400 V, 50 Hz
50 kvar
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Rated control supply voltage AC 60 Hz
240 - 240 V
Rated control supply voltage DC
0 - 0 V
Operating voltage AC 50 Hz
230 - 690 V
Operating voltage AC 60 Hz
230 - 690 V
Rated reactive power at 400 V, 60 Hz
50 kvar
Number of auxiliary contacts as change-over contact
0
Width
55 mm
Height
190 mm
Depth
147 mm
