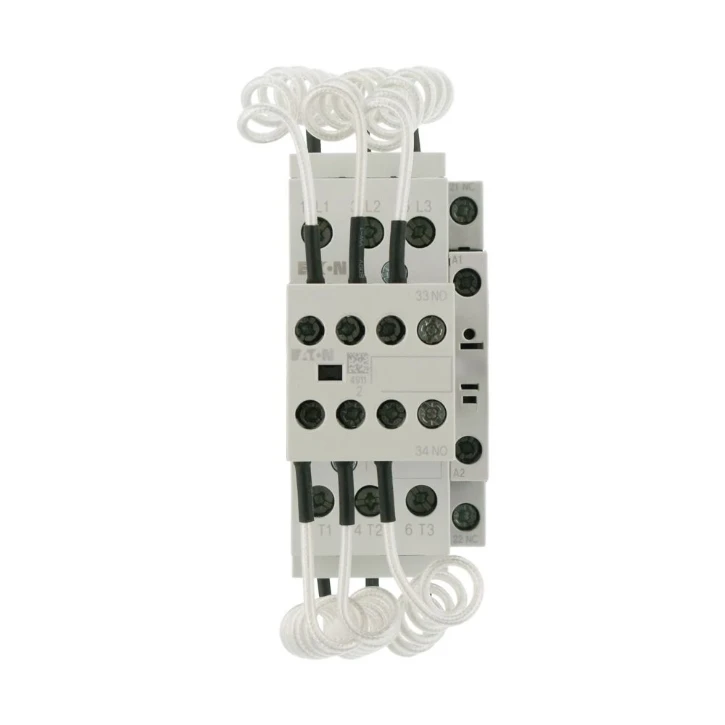

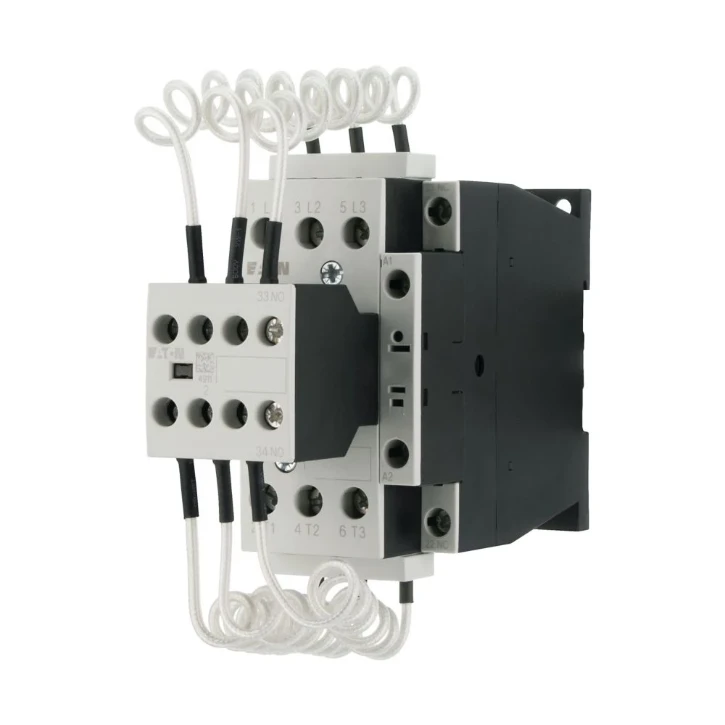

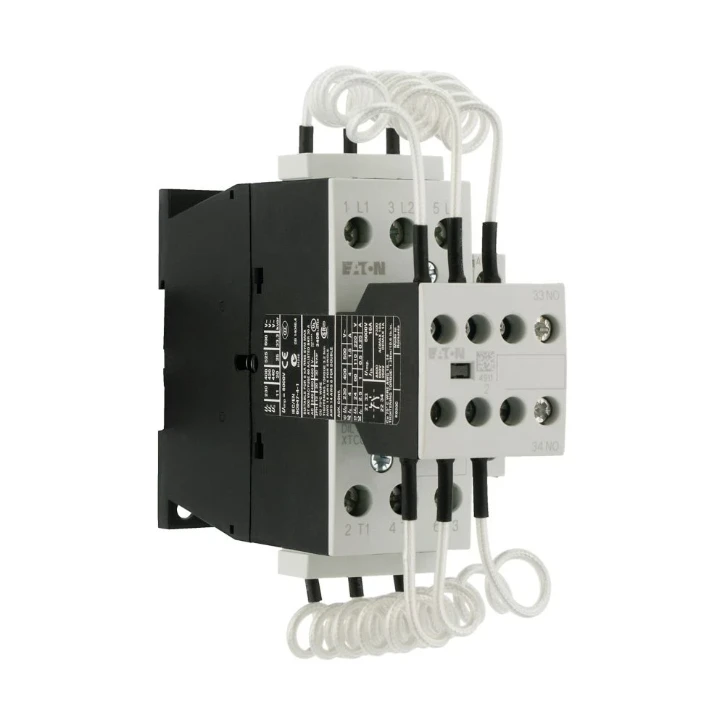

Kondensatorschütz, mit Vorwiderständen, 12,5 kVar, 24 V 50 Hz
- 4579-3282
- |
- 293967
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Kondensatorschütz, mit Vorwiderständen, 12,5 kVar, 24 V 50 Hz
Kondensatorschütz, mit Vorwiderständen, 12,5 kVar, 24 V 50 Hz
Ordercode YESSS
4579-3282
Product code
293967
EAN code
4015082939670
Product group
Capacitor contactor
Brand
Eaton
Serie
Moeller series
Type
DILK12-11(24V50HZ)
Product description
zum Schalten in zentralen Kompensationssystemen mit 180-fachen transienten Spitzen. Die Kondensatoren werden über die voreilenden Hilfsschalter und die eingebauten Drahtwiderstände vorgeladen, wodurch der Einschaltstoßstrom reduziert wird.
Product specifications
Rated control supply voltage AC 50 Hz
24 - 24 V
Voltage type for actuating
AC
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated reactive power at 400 V, 50 Hz
12.5 kvar
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Rated control supply voltage AC 60 Hz
0 - 0 V
Rated control supply voltage DC
0 - 0 V
Operating voltage AC 50 Hz
230 - 690 V
Operating voltage AC 60 Hz
230 - 690 V
Rated switch current
18 A
Rated reactive power at 400 V, 60 Hz
12.5 kvar
Number of auxiliary contacts as change-over contact
0
Width
45 mm
Height
135 mm
Depth
138 mm
