General information
Ordercode YESSS
7537-5568
Product code
199322
EAN code
04015081974061
Product group
Auxiliary contact block
Brand
Eaton

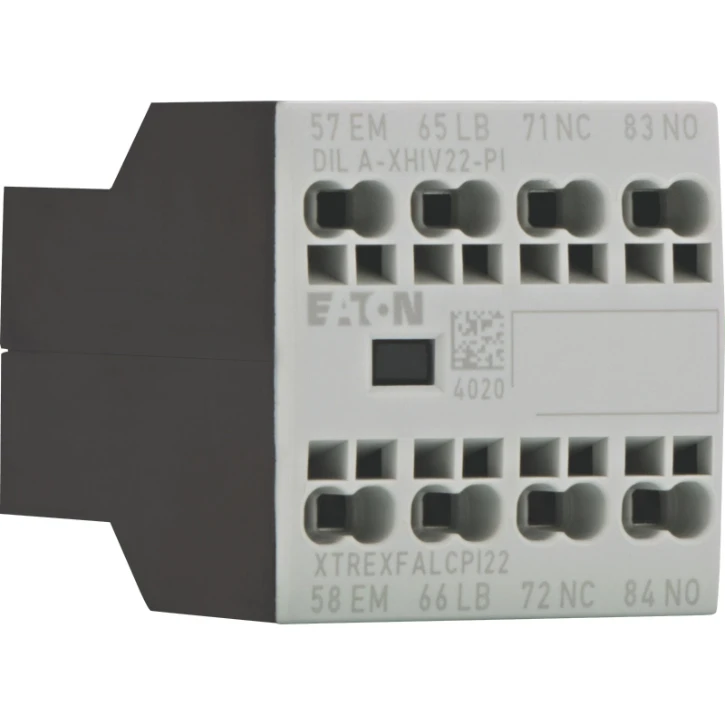

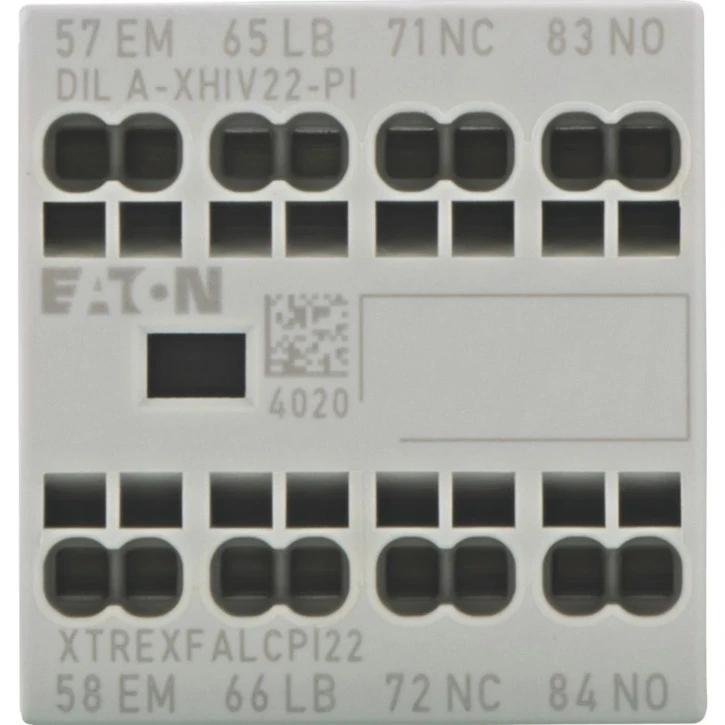

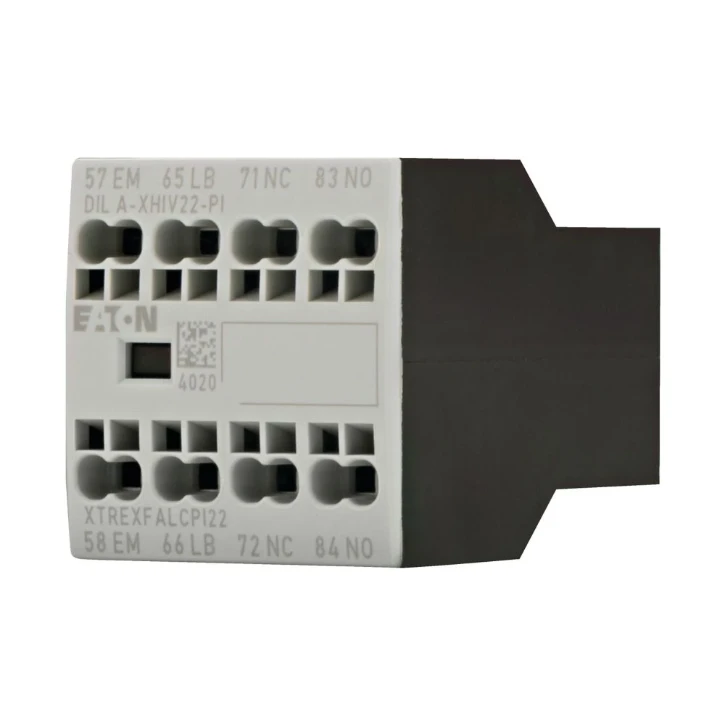

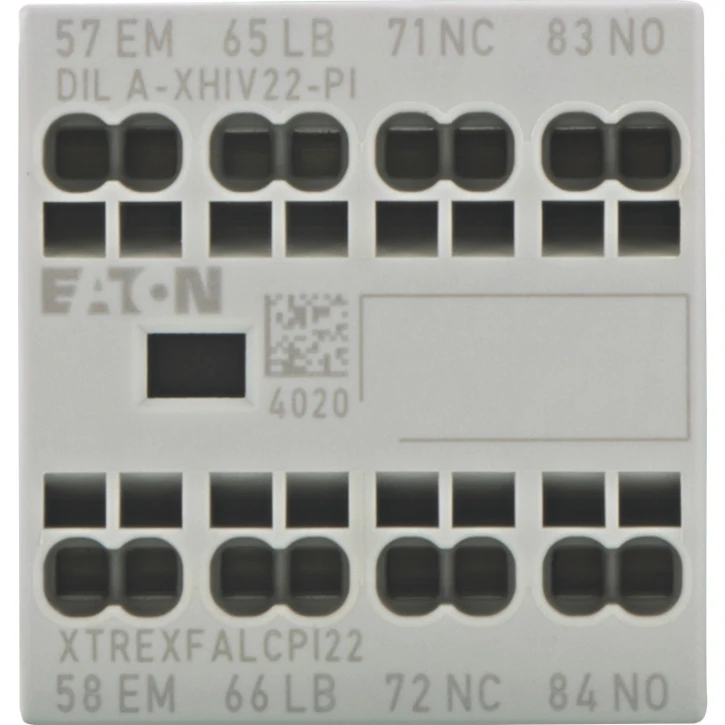

Auxiliary contact module, 4 pole, Ith= 16 A, 1 N/O,
Auxiliary contact module, 4 pole, Ith= 16 A, 1 N/O, 1 N/OE, 1 NC, 1 NC
Product description
Auxiliary contact module, Function: for standard applications, 4 pole, Connection technique: Push in terminals, Ith 16 A, Rated operational current AC-15 220 V 230 V 240 V: Ie= 4 A, Rated operational current AC-15 380 V 400 V 415 V: Ie= 4 A, Contacts N/O = Normally open: 1 N/O, Contacts N/OE: NO early-make: 1 N/OE, Contacts N/C = Normally closed: 1 NC, Contacts NCL=NC late-break: 1 NCL, Mounting type: Front fixing, For use with: DILA…-PI, DILM7…-PI, DILM9…-PI, DILM12…-PI, DILM15…-PI, DILM17…-PI, DILM25…-PI, DILM32…-PI, DILM38…-PI, DILMP20…-PI, DILMP32…-PI, DILMP45…-PI, DILM8…-PI, DILM11…-PI, DILM14…-PI, Type: Front mounting auxiliary contact
Product specifications
Mounting method
Front fastening
Number of contacts as change-over contact
0
Number of contacts as normally open contact
2
Number of contacts as normally closed contact
2
Number of fault-signal switches
0
Type of electric connection
Spring clamp connection
Model
Top mounting
Lamp holder
None
Rated operation current Ie at AC-15, 230 V
4 A
