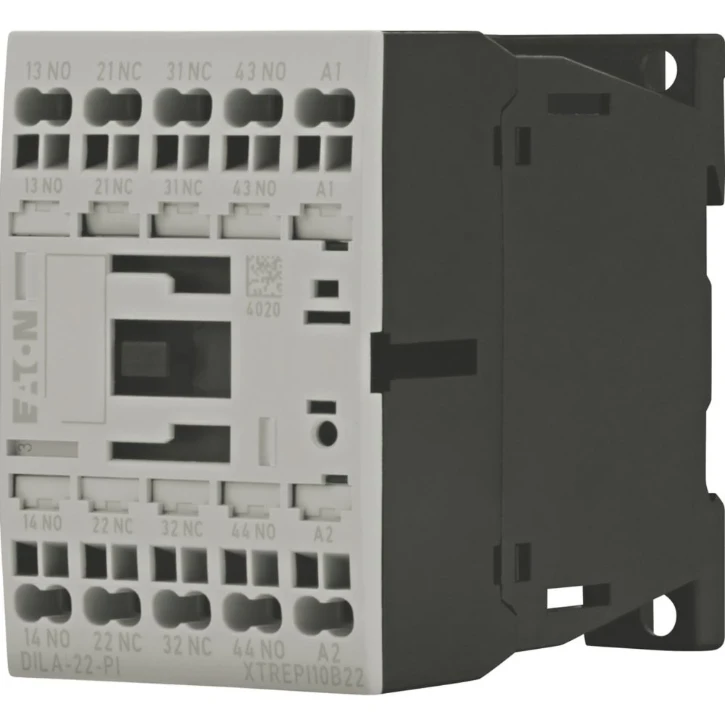

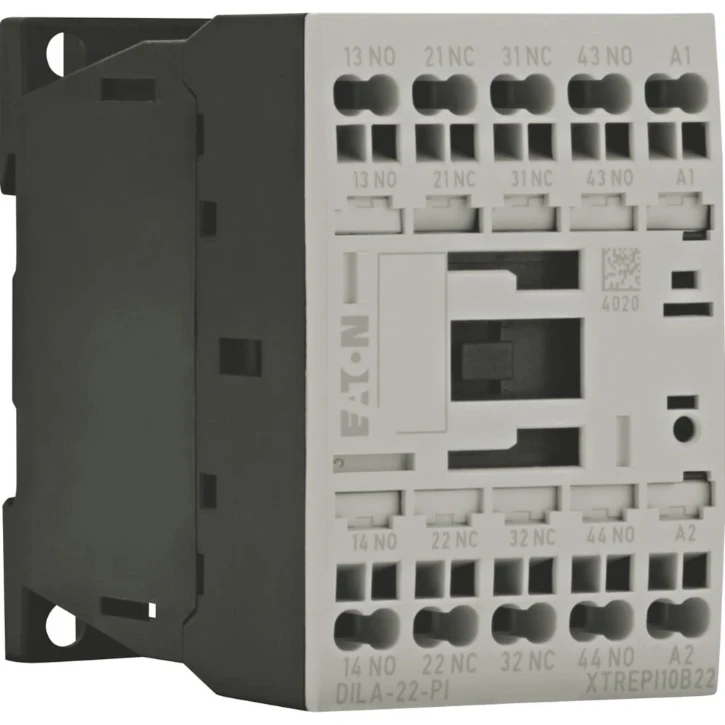

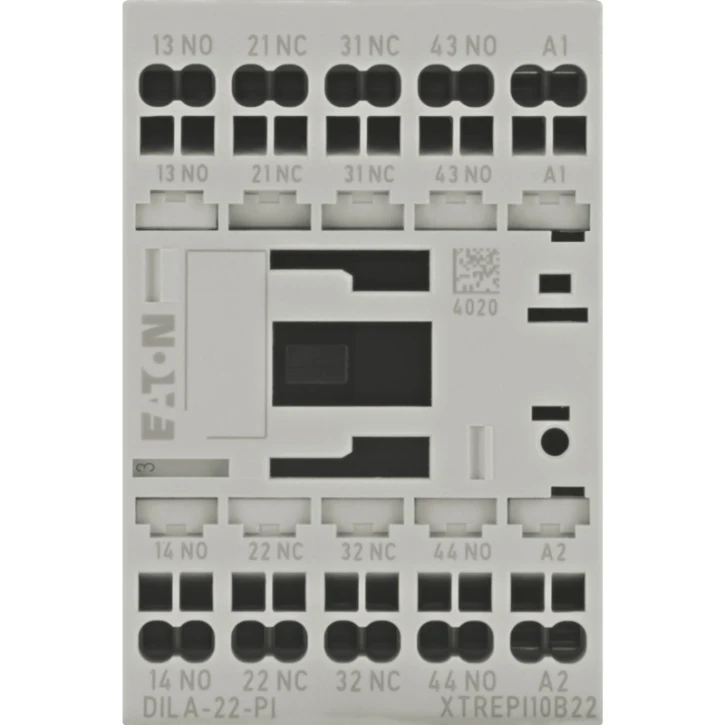

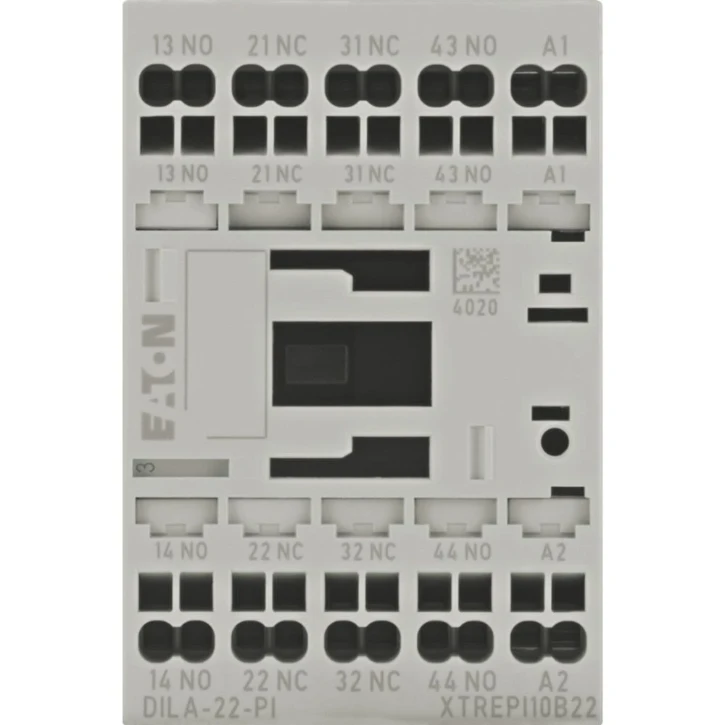

Contactor relay, 230 V 50/60 Hz, 2 N/O, 2 NC,

7537-5538
|
199640

0 piece in stock

Don’t have an account? Request account

Over 6.000 products in stock
Order before 17:00 and receive your order the next working day!
Need help? Call --- --- or contact us via email at [email protected]

General information

Contactor relay, 230 V 50/60 Hz, 2 N/O, 2 NC, Contactor relay, 230 V 50/60 Hz, 2 N/O, 2 NC, Push in terminals, AC op

Ordercode YESSS

7537-5538

Product code

199640

EAN code

4015081983414

Product group

Auxiliary contactor, relay

Brand

Eaton

Serie

Moeller series

Type

DILA-22(230V50/60HZ)-PI

Product description

Contactor relay, Product range: DILA relays, Application: Contactor relays, Description: Basic devices with positive operation contacts, Connection technique: Push in terminals, Rated operational current AC-15 220 V 230 V 240 V: Ie= 4 A, 380 V 400 V 415 V: Ie= 4 A, Contacts N/O = Normally open: 2 N/O, Contacts N/C = Normally closed: 2 NC, Code number and version of combination Distinctive number: 22E, Can be combined with auxiliary contact module: DILA-XHI(V)…-PI, Actuating voltage: 230 V 50/60 Hz, Voltage AC/DC: AC operation, Degree of Protection: IP20, Instructions: Contact numbers to EN 50011, Coil terminal markings to EN 50005 , Standards: IEC/EN 60947, EN 60947-5-1, VDE 0660

Product specifications

Voltage type for actuating

Rated control supply voltage AC 50 Hz

230 - 230 V

Number of auxiliary contacts as normally closed contact

Number of auxiliary contacts as normally open contact

Number of auxiliary contacts as change-over contact

Mounting method

DIN-rail/screw

Number of auxiliary contacts as normally closed contact, delayed switching

Interface

Number of auxiliary contacts as normally open contact, leading

Connection type auxiliary circuit

Push-in clamp connection

Rated operation current Ie, 400 V

4 A

Rated control supply voltage AC 60 Hz

230 - 230 V

With LED indication

Suitable for manual operation

Rated operation current

16 A

Operating voltage AC 50 Hz

17 - 500 V

Operating voltage AC 60 Hz

17 - 500 V

Operating voltage DC

24 - 220 V

Voltage type (operating voltage)

AC/DC

Rated switch current

16 A

Width

45 mm

Height

68 mm

Depth

75 mm

Manufacturer's website

Contactor relay, 230 V 50/60 Hz, 2 N/O, 2 NC,

General information

Product description

Product specifications

Recommended products

Auxiliary contact module, 1 pole, Ith= 16 A, 1 NC, Side mounted, Push

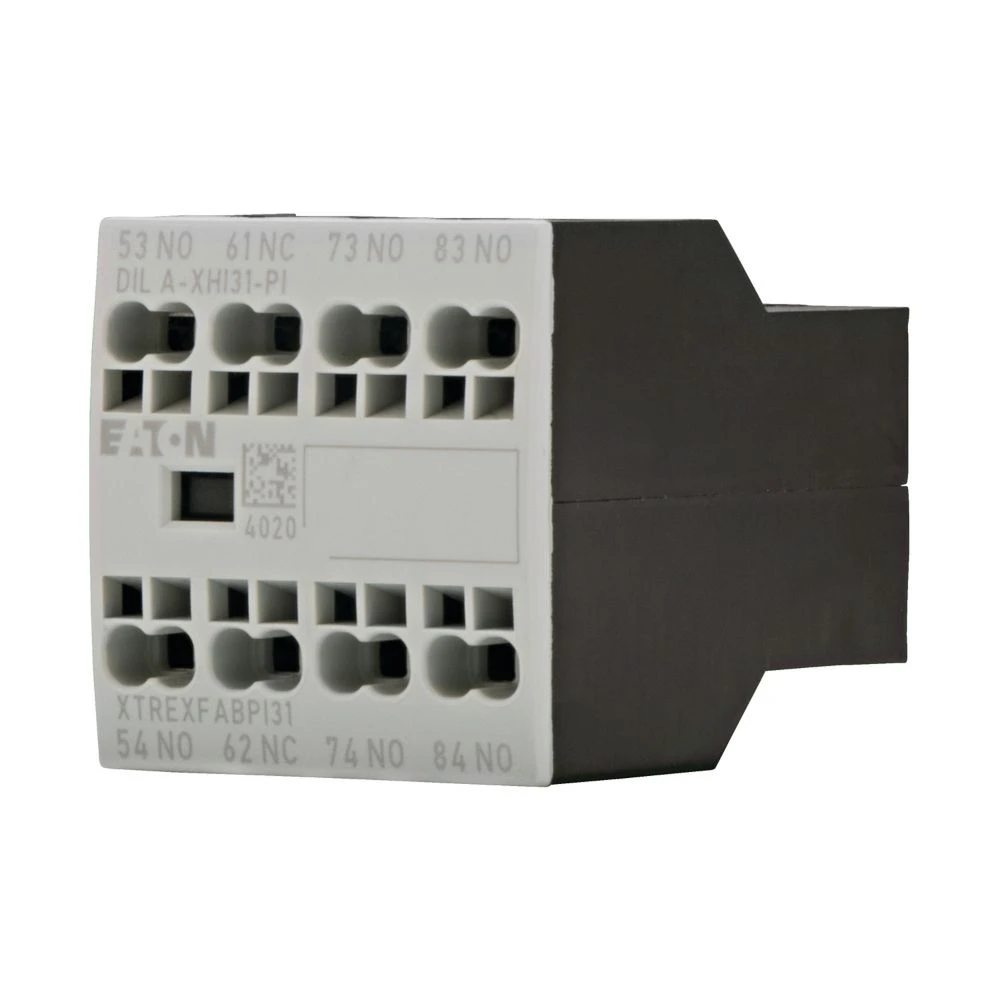

Auxiliary contact module, 4 pole, Ith= 16 A, 3 N/O, 1 NC, Front fixing

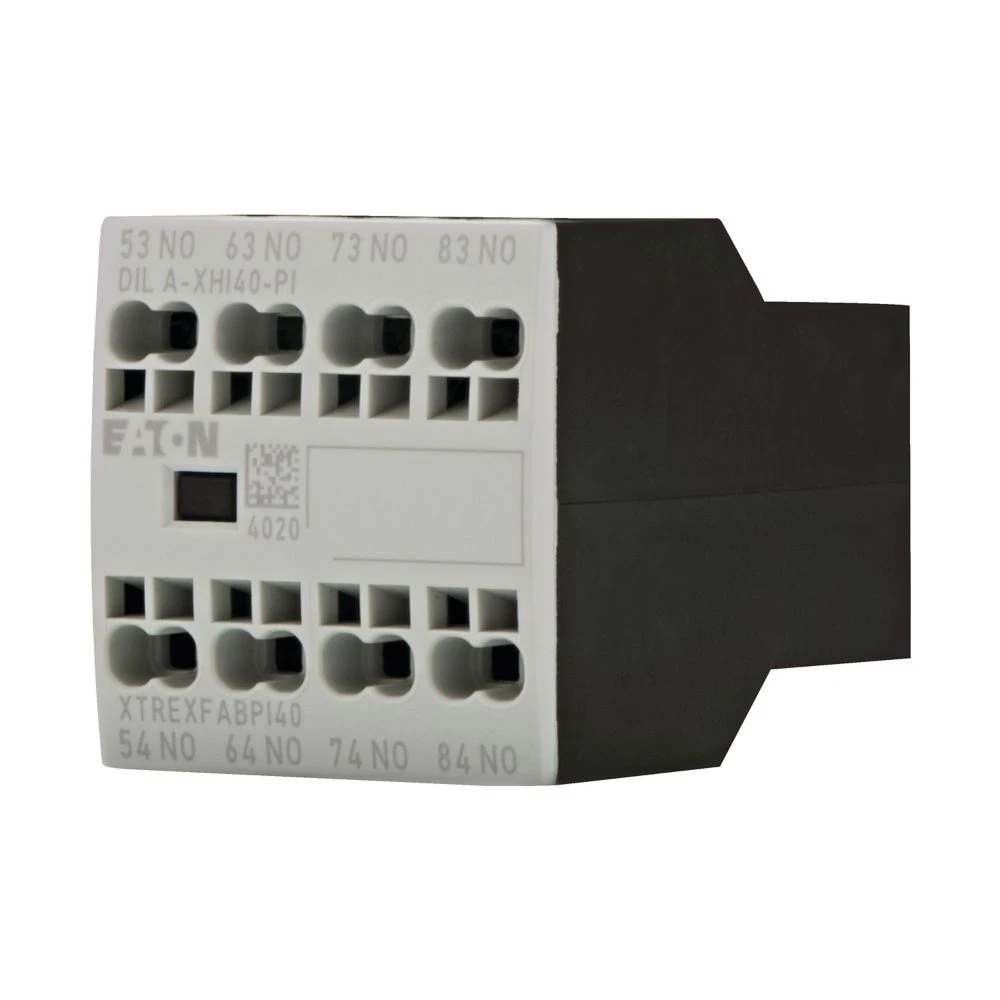

Auxiliary contact module DILA, Four-pole, Ith= 16 A, 4 N/O, Front fast
