Luminaire for streets and places Dotlux
Add to selection
General information
Ordercode YESSS
7596-4135
Product code
5155-130155
EAN code
4255678605286
Product group
Luminaire for streets and places
Brand
Dotlux

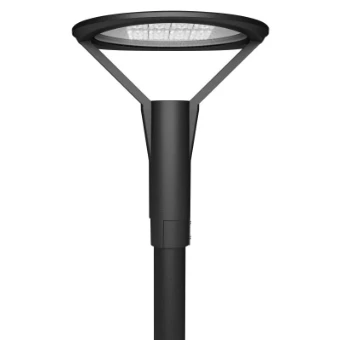

DOTLUX LED street light PLAZA 100W 3000K 1-10V dimmable POWERselect
DOTLUX LED street light PLAZA 100W 3000K 1-10V dimmable POWERselect
Product description
Technical light with feel-good guarantee thanks to higher color rendering in 3000KProtection class I with integrated overvoltage protection (10,000 V)Multilayer lens optics with Lumileds® LEDs enable uniform light distributionSolid cast aluminum housing similar to RAL 9005 with impact resistance class IK08Reliable and highly efficient LED driver with a service life of > 50,000 h ensures low maintenance costsAdapter from 76 to 60 mm also enables installation on 60 mm polesVarious power levels thanks to POWERselect (100%, 75%, 50%, 30%)
Product specifications
Lamp type
LED exchangeable
Mounting method
Post top
Material housing
Aluminium
Degree of protection (IP)
IP66
Protection class
I
Surface protection
Powder coating
Colour housing
Black
Material cover
Glass transparent
Voltage type
AC
Type of control gear
LED operating device voltage-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
Yes
Dimming DALI
No
Dimming DMX
No
Adjustable optics
No
Dimming DSI
No
Impact strength
IK08
With light source
Yes
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Remote control
None
Dimming mains voltage modulation
No
With radio control
No
Dimming phase cut-off
No
Constant light output (CLO)
No
Dimming phase cut-on
No
With light regulation program control
No
Dimming programmable
Yes
With connection cable
Yes
Dimming RF
No
Cable length
1.5 m
Dimming Sine Wave Reduction
No
Colour of light
White
Dimming Zigbee
No
Colour temperature
3000 - 3000 K
Colour rendering index CRI
80-89
Rated life time L70/B50 at 25 °C
1000000 h
Degree of protection (NEMA)
Other
Light distributor
Diffuser lens/optic/panel
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Max. system power
100 W
Luminaire efficacy
115 lm/W
Width
450 mm
Height/depth
526 mm
Length
450 mm
Type of wiring
Ending
Number of poles
3
Connection type
Other
Exchangeable control gear
Yes
Colour consistency (McAdam ellipse)
SDCM5
Art des Anschlusses für Sensor-/Kommunikationsmodul
Other
With light sensor
No
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
Not required
Operation by Bluetooth
No
