Ceiling-/wall luminaire Dotlux
Add to selection
General information
Ordercode YESSS
7593-3241
Product code
5046-130120
EAN code
4255678604555
Product group
Ceiling-/wall luminaire
Brand
Dotlux

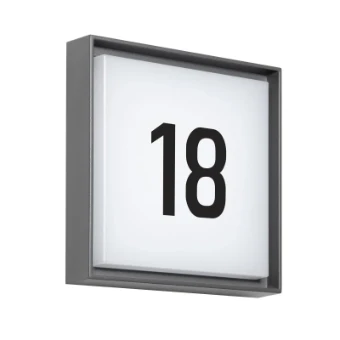

DOTLUX LED house number light WALLsquare 24cm 2.5W 3000K with
DOTLUX LED house number light WALLsquare 24cm 2.5W 3000K with twilight switch (can be deactivated)
Product description
High-quality aluminum housing with powder coating in RAL7016Robust, splash-proof design for outdoor use with IP 65 protectionGlare-free, homogeneous and shadow-free light distributionEasyBase platform enables quick and easy installationWith twilight switchMounting accessories includedInsect-friendly lighting thanks to warm white LEDHousing color similar to RAL 7016Order the house number set 4751 separately:This includes 3 sets of numbers (0 - 9) and one set of letters each in upper case (A - H) and lower case (a - h) with a letter height of 8.5 cm
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Lamp type
LED not exchangeable
With light source
Yes
Type of control gear
Not required
With control gear
No
Suitable for emergency lighting
No
Colour temperature
3000 - 3000 K
Material housing
Aluminium
Dimming 0-10 V
No
Dimming 1-10 V
No
Colour housing
Black
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Dimming DSI
No
Suitable for workplace according to EN 12464-1
No
Dimming potentiometer (integrated)
No
Type of grid
Matt
Dimming manufacturer's proprietary system
No
Light sharing
Symmetric
Dimming mains voltage modulation
No
Beam angle
Extreme wide beam >80°
Dimming phase cut-off
No
Light outlet
Direct
Dimming phase cut-on
No
Length
235 mm
Dimming programmable
No
Width
235 mm
Dimming RF
No
Height/depth
65 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
With movement sensor
No
Light distributor
Diffuser lens/optic/panel
With light sensor
Yes
Protection class
I
Impact strength
IK08
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Covering of the luminaire with thermally insulating material possible
No
Max. system power
2.5 W
With air slots
No
Voltage type
AC
Colour of light
White
Colour rendering index CRI
80-89
Degree of protection (NEMA)
3
Rated ambient temperature according to IEC62722-2-1
-20 - 40 °C
Suitable for lamp power
2.5 - 2.5 W
Power factor
0.9
Surface protection housing
Powder coating
Exchangeable control gear
No
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM3
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
Not required
Compatible with Casambi
No
Erfüllt min. EIA Lebensdauerkriterium L90 (bei 50.000 h bei tq = 25 °C)
Yes
