Ceiling-/wall luminaire Dotlux

Add to selection
General information
Ordercode YESSS
7593-3219
Product code
3487-140170
EAN code
4255678604425
Product group
Ceiling-/wall luminaire
Brand
Dotlux

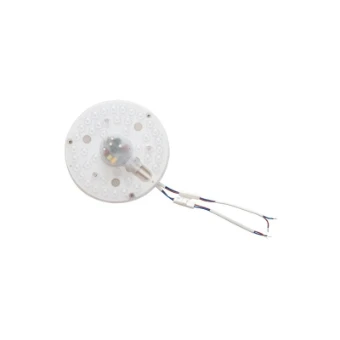

DOTLUX LED refurbishment light QUICK-FIXplus 11 4 W (2 separate DOTLUX LED refurbishment light QUICK-FIXplus 11 4 W (2 separate connections) 4000K
Product description

Our QUICK-FIX LED luminaires enable quick and easy refurbishment of existing wall and ceiling luminaires thanks to our innovative luminaire-in-luminaire systemExtra-high magnetic feet enable installation above the existing cablingVery high efficiency of up to 160lm/W thanks to low-current LEDs and therefore long service lifeSpecial lenses with 170° beam angle ensure absolutely shadow-free light distribution even in larger luminaire housings up to 900 mm in diameterOur QUICK-FIXplus luminaires comply with DIN EN60598-2-22:2014, a standard that confirms approval in the field of emergency lightingTool-free replacement of the LED luminaire even by a non-specialist thanks to AC system plugVarious power specifications:maximum 15Watt@ 2370 lumen 11W circuit = 1750 lumen = 159lm/W 4W circuit = 620 lumen = 155lm/W

Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
Yes
Suitable for surface mounting
Yes
Lamp type
LED exchangeable
With light source
Yes
Type of control gear
Electronic transformer
With control gear
Yes
Suitable for emergency lighting
No
Nominal current
108 - 108 mA
Colour temperature
4000 - 4000 K
Material housing
Plastic
Dimming 0-10 V
No
Dimming 1-10 V
No
Colour housing
White
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Material cover
Plastic, transparent
Dimming DSI
No
Suitable for workplace according to EN 12464-1
Yes
Dimming potentiometer (integrated)
No
Type of grid
None
Dimming manufacturer's proprietary system
No
Light sharing
Symmetric
Dimming mains voltage modulation
No
Beam angle
Extreme wide beam >80°
Dimming phase cut-off
No
Light outlet
Direct
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Height/depth
40 mm
Outer diameter
180 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
With movement sensor
No
Light distributor
Diffuser lens/optic/panel
With light sensor
No
Protection class
II
Impact strength
IK05
Covering of the luminaire with thermally insulating material possible
No
With air slots
No
Voltage type
AC/DC
Rated life time L70/B50 at 25 °C
100000 h
Colour of light
White
Colour rendering index CRI
80-89
Rated ambient temperature according to IEC62722-2-1
-20 - 40 °C
Filament test according to IEC 60695-2-11
None
Power factor
0.55
Type of wiring
Ending
Connection type
Cable
Surface protection housing
Untreated
Exchangeable control gear
No
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM6
Max. number of luminaires per miniature circuit breaker B16
43
Max. number of luminaires per miniature circuit breaker C16
73
Constant light output (CLO)
No
Photobiological safety according to EN 62471
RG1
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
Not required
Compatible with Casambi
No
