Downlight/spot/floodlight Dotlux
Add to selection
General information
Ordercode YESSS
7587-9576
Product code
5776-099060
EAN code
4255678600595
Product group
Downlight/spot/floodlight
Brand
Dotlux

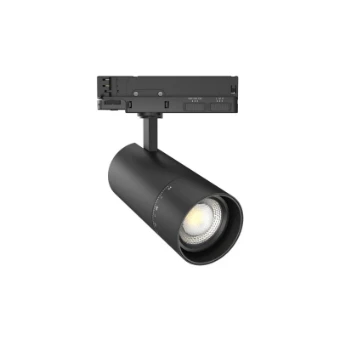

DOTLUX LED tracklight ZOOMtrack max.33W POWERselect & COLORselect black
DOTLUX LED tracklight ZOOMtrack max.33W POWERselect & COLORselect black
Product description
Smoothless technology enables infinitely adjustable beam angle without color distortionCompatible with EUTRAC and almost all other 3-phase tracksOne tracklight - many new features thanks to POWERselect and COLORselect, each adjustable to 3 different levelsThe power supply unit integrated into the track adapter enables a long service life thanks to heat decouplingThe swivel and rotation function enables flexible illuminationNatural color perception thanks to the extra high CRI value >92Particularly high-quality design thanks to solid aluminum housingSustainable product design thanks to easily replaceable componentsAdjustable beam angle from 24° to 60
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Lamp type
LED exchangeable
Suitable for ceiling mounting
No
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
Yes
Suitable for clamp-mounting
No
With movement sensor
No
Adjustability
Rotating and swivelling
With light source
Yes
Colour housing
Silver
Suitable for low voltage cable system
No
With light sensor
No
Reflector
Other
Suitable for number of lamps
1
Suitable for lamp power
33 - 33 W
With control gear
Yes
Surface protection
Powder coating
Nominal current
160 - 160 mA
Max. system power
33 W
Surface brushed
No
Nominal voltage
220 - 220 V
Colour temperature
2700 - 4000 K
Material housing
Aluminium
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Beam angle
Variable beam angle
Dimming potentiometer (integrated)
No
Length
170 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
250 mm
Voltage type
AC/DC
Dimming mains voltage modulation
No
Outer diameter
80 mm
Dimming phase cut-off
No
Dimming phase cut-on
No
Colour of light
Multi-coloured
Dimming programmable
No
Colour rendering index CRI
90-100
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class
II
Dimming Touch and Dim
No
Impact strength
IK05
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Light distributor
Reflector
Covering of the luminaire with thermally insulating material possible
No
Rated life time L70/B50 at 25 °C
75000 h
Rated ambient temperature according to IEC62722-2-1
40 - 40 °C
Power factor
0.972
Type of wiring
Through wiring included
Number of poles
2
Conductor cross section
0.75 mm²
Connectable conductor cross section
0.75 - 0.75 mm²
Connection type
Busbar adapter
Suitable for workplace according to EN 12464-1
No
Filament test according to IEC 60695-2-11
750 °C - 30 s
Photobiological safety according to EN 62471
RG1
Colour consistency (McAdam ellipse)
SDCM6
Suitable for wall mounting
No
Exchangeable control gear
Yes
Dimming DALI-2
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
95.36 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
0 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
0 %
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
95 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
0 %
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
0 %
Constant light output (CLO)
Yes
Flickering value Pst LM
1
Colour temperature adjustable
Continuously variable
Luminous flux adjustable
Positions
Beam angle adjustable
Positions
Stroboscope effect value SVM
0.4
Built-in diameter
80 - 80 mm
Max. number of luminaires per miniature circuit breaker B16
32
Max. number of luminaires per miniature circuit breaker C16
48
IFTTT support available
No
Unified Glare Ratio (UGR)
22
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
Not required
Operation by Bluetooth
No
Reflector colour
Silver
