Downlight/spot/floodlight Dotlux
Add to selection
General information
Ordercode YESSS
7587-9573
Product code
5772-099100
EAN code
4255678600540
Product group
Downlight/spot/floodlight
Brand
Dotlux

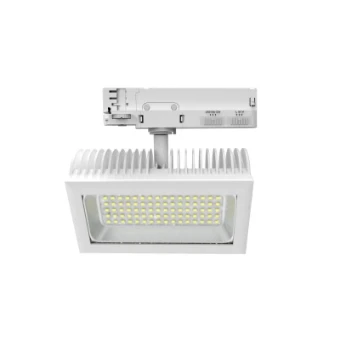

DOTLUX LED tracklight FLEXAtrack max.32W POWERselect & COLORselect 100° white
DOTLUX LED tracklight FLEXAtrack max.32W POWERselect & COLORselect 100° white
Product description
Equipped with innovative Epistar2835 LEDsOne tracklight - many new features thanks to POWERselect and COLORselect, each adjustable to 3 different levelsCompatible with EUTRAC and almost all other 3-phase tracksThe power supply unit integrated into the track adapter enables a long service life thanks to heat decouplingThe swivel and rotation function enables flexible illuminationHighly efficient, passive die-cast aluminum heat sinkUniform light distribution thanks to the special diffusing lensSustainable product design thanks to easily replaceable components
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
No
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
Yes
Suitable for clamp-mounting
No
With movement sensor
No
Adjustability
Rotating and swivelling
With light source
Yes
Colour housing
White
Suitable for low voltage cable system
No
With light sensor
No
Reflector
Other
Light sharing
Symmetric
Suitable for number of lamps
0
Suitable for lamp power
33 - 33 W
With control gear
Yes
Surface protection
Powder coating
Nominal current
160 - 160 mA
Max. system power
32 W
Surface brushed
No
Nominal voltage
220 - 220 V
Colour temperature
3000 - 5700 K
Material housing
Aluminium
Material cover
Other
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Beam angle
Extreme wide beam >80°
Dimming potentiometer (integrated)
No
Length
201 mm
Width
108 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
153 mm
Voltage type
AC/DC
Dimming mains voltage modulation
No
Outer diameter
201 mm
Dimming phase cut-off
No
Dimming phase cut-on
No
Colour of light
Multi-coloured
Dimming programmable
No
Colour rendering index CRI
90-100
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class
II
Dimming Touch and Dim
No
Impact strength
IK05
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Light distributor
Diffuser lens/optic/panel
Covering of the luminaire with thermally insulating material possible
Yes
Light outlet
Direct
Rated life time L70/B50 at 25 °C
75000 h
Degree of protection (NEMA)
1
Rated ambient temperature according to IEC62722-2-1
40 - 40 °C
Power factor
0.974
Type of wiring
Through wiring included
Number of poles
2
Conductor cross section
0.75 mm²
Connectable conductor cross section
0.75 - 0.75 mm²
Connection type
Busbar adapter
Suitable for workplace according to EN 12464-1
No
Filament test according to IEC 60695-2-11
750 °C - 30 s
Photobiological safety according to EN 62471
RG1
Colour consistency (McAdam ellipse)
SDCM6
Suitable for wall mounting
No
Exchangeable control gear
Yes
Dimming DALI-2
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
95.36 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
0 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
0 %
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
95 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
0 %
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
0 %
Constant light output (CLO)
Yes
Flickering value Pst LM
1
Colour temperature adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
Continuously variable
Stroboscope effect value SVM
0.4
Max. number of luminaires per miniature circuit breaker B16
32
Max. number of luminaires per miniature circuit breaker C16
48
IFTTT support available
No
Unified Glare Ratio (UGR)
22
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
Not required
Operation by Bluetooth
No
Reflector colour
Other
