Downlight/spot/floodlight Dotlux
Add to selection
General information
Ordercode YESSS
7531-1996
Product code
5147-040120
EAN code
4260629149658
Product group
Downlight/spot/floodlight
Brand
Dotlux

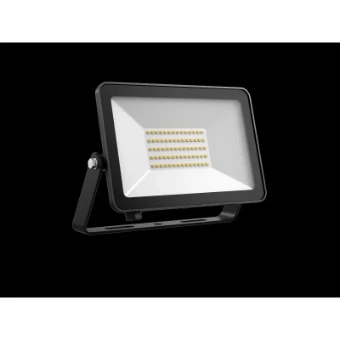

DOTLUX LED spotlight FLOORslim 50W 4000K black
DOTLUX LED spotlight FLOORslim 50W 4000K black
Product description
Solid, waterproof, die-cast aluminum housing with efficient cooling and high-quality powder coating from Akzo NobelReliable operation thanks to brand LEDs from LUMILEDS and capacitorless power supply unit with 2kV overvoltage protectionESG safety glass - ULTRA CLEAR - highly transparent glass for excellent light color and improved light outputCurved mounting bracket enables easy installation without having to dismantle the bracket (freely rotatable 320°)Incl. 1m UV-stable rubber cable (H05RN-F open ends)
Product specifications
Adjustability
Swivelling
Colour housing
Black
Colour temperature
4000 - 4000 K
Material housing
Aluminium
Material cover
Glass transparent
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Length
239 mm
Width
192 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
44 mm
Voltage type
AC
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Colour of light
White
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class
I
Dimming Touch and Dim
No
Impact strength
IK08
Dimming Zigbee
No
Dimming with push-button
No
Covering of the luminaire with thermally insulating material possible
No
Rated life time L70/B50 at 25 °C
70000 h
Power factor
0.9
Suitable for workplace according to EN 12464-1
No
Colour consistency (McAdam ellipse)
SDCM6
Dimming DALI-2
No
Colour temperature adjustable
No
Max. number of luminaires per miniature circuit breaker B16
18
Max. number of luminaires per miniature circuit breaker C16
18
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
Not required
