Downlight/spot/floodlight Dotlux
Add to selection
General information
Ordercode YESSS
7531-1995
Product code
5147-030120
EAN code
4260629149641
Product group
Downlight/spot/floodlight
Brand
Dotlux

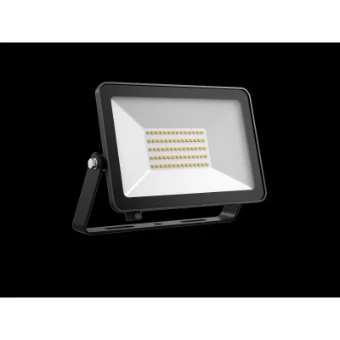

DOTLUX LED spotlight FLOORslim 50W 3000K black
DOTLUX LED spotlight FLOORslim 50W 3000K black
Product description
Solid, waterproof, die-cast aluminum housing with efficient cooling and high-quality powder coating from Akzo NobelReliable operation thanks to brand LEDs from LUMILEDS and capacitorless power supply unit with 2kV overvoltage protectionESG safety glass - ULTRA CLEAR - highly transparent glass for excellent light color and improved light outputCurved mounting bracket enables easy installation without having to dismantle the bracket (freely rotatable 320°)Incl. 1m UV-stable rubber cable (H05RN-F open ends)
Product specifications
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Lamp type
LED exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
Adjustability
Swivelling
With light source
Yes
Colour housing
Black
Suitable for low voltage cable system
No
With light sensor
No
Reflector
None
Light sharing
Symmetric
Suitable for lamp power
50 - 50 W
With control gear
Yes
Surface protection
Powder coating
Max. system power
50 W
Surface brushed
No
Colour temperature
3000 - 3000 K
Material housing
Aluminium
Material cover
Glass transparent
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Length
239 mm
Width
192 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
44 mm
Voltage type
AC
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
80-89
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class
I
Dimming Touch and Dim
No
Impact strength
IK08
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
None
Covering of the luminaire with thermally insulating material possible
No
Light outlet
Direct
Rated life time L70/B50 at 25 °C
70000 h
Rated ambient temperature according to IEC62722-2-1
-30 - 50 °C
Power factor
0.9
Suitable for workplace according to EN 12464-1
No
Colour consistency (McAdam ellipse)
SDCM6
Suitable for wall mounting
Yes
Dimming DALI-2
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Max. number of luminaires per miniature circuit breaker B16
18
Max. number of luminaires per miniature circuit breaker C16
18
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
Not required
Product information
