Luminaire for streets and places Dotlux

Add to selection
General information
Ordercode YESSS
6972-9202
Product code
4966-030120
EAN code
4260629145872
Product group
Luminaire for streets and places
Brand
Dotlux

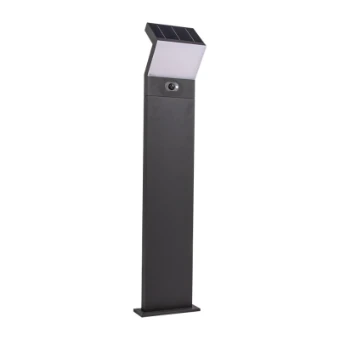

DOTLUX LED solar bollard light FLASHground with sensor 100 cm DOTLUX LED solar bollard light FLASHground with sensor 100 cm 3.5W 3000K
Product description

Solar lithium-ion battery light with motion sensor (2 selectable operating modes)Reliable and fast battery charging thanks to large SOLAR panel, also suitable for indirect light incidenceParticularly insect-friendly lighting thanks to warm white LEDs and motion sensorHigh-quality, splash-proof aluminum housing with weather-resistant powder coatingLarge, homogeneously designed illuminated area enables glare-free light distribution Includes rechargeable battery (replaceable) and mounting accessories Concrete anchor optionally available Article no.: 4968Motion sensor operating modes:A) 15% permanent light intensity after sunset, 100% light intensity in case of movement (duration 15 seconds)B) 0% light intensity after sunset, 100% light intensity on movement (duration 15 seconds)

Product specifications
Lamp type
LED not exchangeable
Mounting method
Other
Material housing
Aluminium
Degree of protection (IP)
IP54
Protection class
III
Surface protection
Powder coating
Lamp holder
2G10
Colour housing
Grey
Material cover
Plastic matt/satinized
Suitable for number of lamps
60
Voltage type
DC
Nominal voltage
7.4 - 7.4 V
Nominal current
450 - 450 mA
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Adjustable optics
No
Dimming DSI
No
Impact strength
IK06
With light source
Yes
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Remote control
None
Dimming mains voltage modulation
No
With radio control
No
Dimming phase cut-off
No
Constant light output (CLO)
Yes
Dimming phase cut-on
No
With light regulation program control
Yes
Dimming programmable
No
With connection cable
Yes
Dimming RF
No
Cable length
0 m
Dimming Sine Wave Reduction
No
Colour of light
White
Dimming Zigbee
No
Colour temperature
3000 - 3000 K
Colour rendering index CRI
80-89
Rated life time L70/B50 at 25 °C
50000 h
Degree of protection (NEMA)
1
Light distributor
None
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Rated ambient temperature according to IEC62722-2-1
-24 - 45 °C
Suitable for lamp power
3.5 - 3.5 W
Max. system power
3.5 W
Luminaire efficacy
71 lm/W
Width
220 mm
Height/depth
1000 mm
Length
148 mm
Type of wiring
Suitable for through wiring
Connection type
Other
Exchangeable control gear
Yes
Colour consistency (McAdam ellipse)
SDCM6
Art des Anschlusses für Sensor-/Kommunikationsmodul
Other
With light sensor
Yes
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
Not required
Operation by Bluetooth
No
more specifications
Product information
Manufacturer's website
