Ceiling-/wall luminaire Dotlux

Add to selection

General information

Ordercode YESSS

6972-9196

Product code

4965-030120

EAN code

4260629145858

Product group

Ceiling-/wall luminaire

Brand

Dotlux

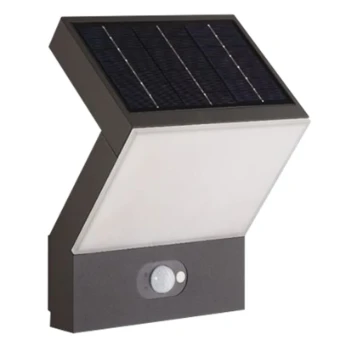

DOTLUX LED solar wall light FLASHwall with sensor 3.5W 3000K DOTLUX LED solar wall light FLASHwall with sensor 3.5W 3000K

Product description

Solar lithium-ion battery light with motion sensor (2 selectable operating modes)Reliable and fast battery charging thanks to large SOLAR panel, also suitable for indirect light incidenceParticularly insect-friendly lighting thanks to warm white LEDs and motion sensorHigh-quality, splash-proof aluminum housing with weather-resistant powder coatingLarge, homogeneously designed light surface enables glare-free light distribution Easy alignment of the light thanks to adjustable stainless steel mounting bracketIncludes rechargeable battery (replaceable) and mounting accessoriesCan also be used as a house number light with the house number setMotion sensor operating modes:A) 15% permanent light intensity after sunset, 100% light intensity on movement (duration 15 seconds)B) 0% light intensity after sunset, 100% light intensity on movement (duration 15 seconds)

Product specifications

Suitable for suspended mounting

Suitable for ceiling mounting

Suitable for built-in mounting

Suitable for surface mounting

Lamp type

LED exchangeable

With light source

Yes

Lamp holder

2G10

Suitable for number of lamps

Type of control gear

LED operating device current-controlled

With control gear

Yes

Suitable for emergency lighting

Nominal voltage

7.4 - 7.4 V

Nominal current

450 - 450 mA

Colour temperature

3000 - 3000 K

Material housing

Aluminium

Dimming 0-10 V

Dimming 1-10 V

Colour housing

Grey

Dimming DALI

Suitable for light line configuration

Dimming DMX

Material cover

Plastic matt/satinized

Dimming DSI

Suitable for workplace according to EN 12464-1

Dimming potentiometer (integrated)

Type of grid

None

Dimming manufacturer's proprietary system

Light sharing

Symmetric

Dimming mains voltage modulation

Beam angle

Extreme wide beam >80°

Dimming phase cut-off

Light outlet

Direct

Dimming phase cut-on

Length

160 mm

Dimming programmable

Width

180 mm

Dimming RF

Height/depth

255 mm

Dimming Touch and Dim

Dimming Zigbee

Dimming with push-button

With movement sensor

Yes

Light distributor

None

With light sensor

Yes

Protection class

III

Impact strength

IK06

Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24

Covering of the luminaire with thermally insulating material possible

Max. system power

3.5 W

With air slots

Voltage type

Rated life time L70/B50 at 25 °C

50000 h

Colour of light

White

Colour rendering index CRI

80-89

Degree of protection (NEMA)

Rated ambient temperature according to IEC62722-2-1

-25 - 45 °C

Filament test according to IEC 60695-2-11

None

Suitable for lamp power

3.5 - 3.5 W

Type of wiring

Suitable for through wiring

Connection type

Cable

Surface protection housing

Powder coating

Exchangeable control gear

Dimming DALI-2

Colour consistency (McAdam ellipse)

SDCM6

Stroboscope effect value SVM

Constant light output (CLO)

Yes

Colour temperature adjustable

Luminous flux adjustable

Beam angle adjustable

Operation by Bluetooth

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Suitable for wall mounting

Yes

Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015

Not required

Compatible with Casambi

Erfüllt min. EIA Lebensdauerkriterium L90 (bei 50.000 h bei tq = 25 °C)
