Ceiling-/wall luminaire Dotlux

Add to selection
General information
Ordercode YESSS
6656-2999
Product code
4355-030036
EAN code
4260523598200
Product group
Ceiling-/wall luminaire
Brand
Dotlux

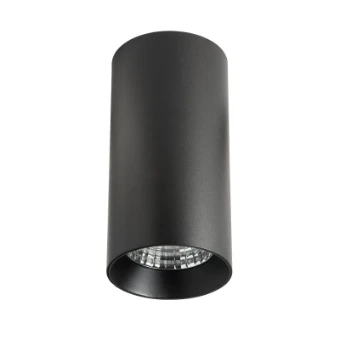

DOTLUX LED light SLIMvario Ø80x160mm 18W 3000K black DOTLUX LED light SLIMvario Ø80x160mm 18W 3000K black
Product description

Individual design thanks to interchangeable decorative ring and suspension sets that can be combined in different waysNatural color perception thanks to the high CRI value >90Replaceable high-performance reflectors available as accessoriesHigh-quality aluminum housing with powder coating

Product specifications
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Lamp type
LED exchangeable
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Colour temperature
3000 - 3000 K
Material housing
Aluminium
Dimming 0-10 V
No
Dimming 1-10 V
No
Colour housing
Black
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Dimming DSI
No
Suitable for workplace according to EN 12464-1
No
Dimming potentiometer (integrated)
No
Dimming manufacturer's proprietary system
No
Light sharing
Symmetric
Dimming mains voltage modulation
Yes
Beam angle
Medium beam 21-40°
Dimming phase cut-off
Yes
Light outlet
Direct
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Height/depth
160 mm
Outer diameter
80 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
With movement sensor
No
Light distributor
Reflector
With light sensor
No
Protection class
I
Covering of the luminaire with thermally insulating material possible
No
Max. system power
18 W
With air slots
No
Voltage type
AC
Colour of light
White
Colour rendering index CRI
90-100
Suitable for lamp power
18 - 18 W
Power factor
0.9
Type of wiring
Ending
Surface protection housing
Powder coating
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM3
Max. number of luminaires per miniature circuit breaker B16
107
Max. number of luminaires per miniature circuit breaker C16
107
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
Positions
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Suitable for wall mounting
Yes
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
Not required
Compatible with Casambi
No
more specifications
Product information
Manufacturer's website
