General information
Ordercode YESSS
5222-8741
Product code
3454
EAN code
4260210327601
Product group
Luminaire for streets and places
Brand
Dotlux

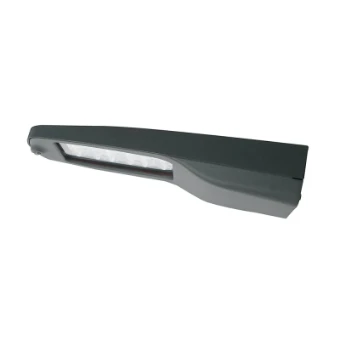

DOTLUX LED street light BELUGAmicro 20W 4000K without pole adapter
DOTLUX LED street light BELUGAmicro 20W 4000K without pole adapter
Product description
Protection class I with integrated overvoltage protection (10,000 V)Variety of adapters enables mounting on all pole diametersThe multilayer lens optics with CREE® LEDs enable uniform light distributionSolid cast aluminum housing in RAL 7022 with impact resistance class IK09Reliable and highly efficient LED driver with a service life of > 80,000h ensures low maintenance costs
Product specifications
Lamp type
LED not exchangeable
Mounting method
Post top/side entry
Material housing
Aluminium
Degree of protection (IP)
IP66
Protection class
I
Surface protection
Powder coating
Suitable for spigot size
48 - 76 mm
Colour housing
Grey
Material cover
Glass transparent
Voltage type
AC
Nominal voltage
230 - 230 V
Nominal current
90 - 90 mA
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Adjustable optics
No
Dimming DSI
No
Impact strength
IK09
With light source
Yes
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Remote control
None
Dimming mains voltage modulation
No
With radio control
No
Dimming phase cut-off
No
Constant light output (CLO)
No
Dimming phase cut-on
No
With light regulation program control
No
Dimming programmable
No
With connection cable
No
Dimming RF
No
Cable length
0 m
Dimming Sine Wave Reduction
No
Colour of light
White
Dimming Zigbee
No
Colour temperature
4000 - 4000 K
Colour rendering index CRI
70-79
Degree of protection (NEMA)
Other
Light distributor
Diffuser lens/optic/panel
Rated ambient temperature according to IEC62722-2-1
50 - 50 °C
Suitable for lamp power
20 - 20 W
Max. system power
20 W
Luminaire efficacy
120 lm/W
Power factor
0.96
Width
190 mm
Height/depth
92 mm
Length
405 mm
Type of wiring
Ending
Number of poles
3
Conductor cross section
0.75 mm²
Connection type
Push-in clamp
Exchangeable control gear
Yes
Colour consistency (McAdam ellipse)
SDCM5
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
96 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
92 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
5 %
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
10 %
Art des Anschlusses für Sensor-/Kommunikationsmodul
Other
With light sensor
No
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
Not required
Max. number of luminaires per miniature circuit breaker B16
49
Max. number of luminaires per miniature circuit breaker C16
83
Operation by Bluetooth
No
