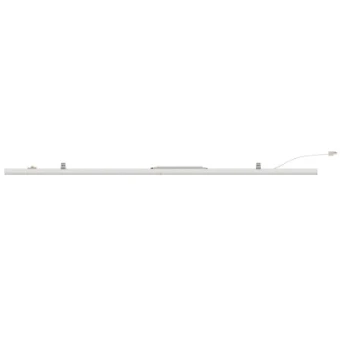

DOTLUX LED-Leuchteneinsatz LINEAone 1472mm max. 74W 4000K DALI 90° IP54
Add to selection
General information
Ordercode YESSS
7608-8437
Product code
6975-140090
EAN code
4255678608461
Product group
Ceiling-/wall luminaire
Brand
Dotlux
Type
6975-140090
DOTLUX LED-Leuchteneinsatz LINEAone 1472mm max. 74W 4000K DALI 90° IP54
DOTLUX LED-Leuchteneinsatz LINEAone 1472mm max. 74W 4000K DALI 90° IP54
STOCK
IN STOCK
0
piece
Product description
Blendreduzierte 90° PMMA-Linsenoptik UGR Schnellste Befestigung durch einstellbare Feder-Rastklammern Umweltfreundliche Weiterverwendung Ihres vorhandenen Tragschienensystems Eigenständiges, integriertes Kabelsystem (8 x 1,5 mm2 inkl. Ladestrom Notbeleuchtung) mit Schnellsteckern Flexible Phasenwahl und Leistungsanpassung direkt in der Leuchte Lange Lebensdauer dank überdimensionierter Kühlung Inkl. zwei Sicherheitsfangseilen/Montagehilfe Spritzwassergeschütztes Gehäusedesign durch IP54 Anpassbare Leistung durch POWERselect 12950lm@ 74W 500mA 11880lm@ 66W 450mA 10800lm@ 60W 400mA 9360lm@ 52W 350mA 8100lm@ 45W 300mA 6660lm@ 37W 250mA 5400lm@ 30W 200mA
Product specifications
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
No
Lamp type
LED not exchangeable
With light source
Yes
Type of control gear
LED operating device voltage-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
240 - 240 V
Nominal current
550 - 550 mA
Colour temperature
4000 - 4000 K
Housing material
Aluminium
Dimming 0-10 V
No
Dimming 1-10 V
No
Housing colour
White
Dimming DALI
Yes
Suitable for light line configuration
Yes
Dimming DMX
No
Material cover
Other
Dimming DSI
No
Suitable for workplace according to EN 12464-1
No
Dimming potentiometer (integrated)
No
Type of grid
Matt
Dimming manufacturer's proprietary system
No
Light distribution
Symmetric/asymmetric
Dimming mains voltage modulation
No
Beam angle
> 80° - Extreme wide beam
Dimming phase cut-off (trailing edge)
No
Light outlet
Direct
Dimming phase cut-on (leading edge)
No
Length
1470 mm
Dimming programmable
No
Width
66 mm
Dimming RF
No
Height/depth
31 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
With movement sensor
No
Light distributor
Diffuser lens/optic/panel
With light sensor
No
Protection class according to IEC 61140
II
Impact strength
IK06
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Covering of the luminaire with thermally insulating material possible
No
Max. system power
74 W
With air slots
No
Voltage type
AC
Rated lifetime L70/B50 at 25 °C
200000 h
Colour of light
White
Colour rendering index CRI
80-89
Degree of protection (NEMA)
Other
Rated ambient temperature according to IEC 62722-2-1
-20 - 45 °C
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power
74 - 74 W
Power factor
0.98
Number of poles
7
Connection type
Other
Exchangeable control gear
Yes
Dimming DALI-2
Yes
Colour consistency (McAdam ellipse)
SDCM3
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
85 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
80 %
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
3 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
5 %
Max. number of luminaires per miniature circuit breaker B16 (MCB)
22
Max. number of luminaires per miniature circuit breaker C16 (MCB)
36
Constant light output (CLO)
Yes
Photobiological safety according to EN 62471
RG1
Unified Glare Ratio (UGR)
22
Colour of light adjustable
No
Luminous flux adjustable
Positions
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
No
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Compatible with Casambi
No
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
Yes
