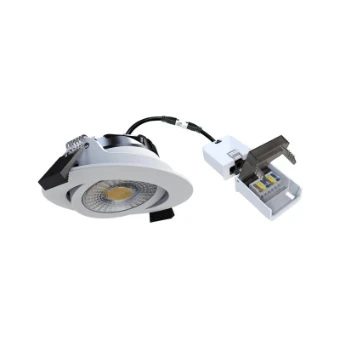

DOTLUX LED-Downlight CIRCLEmini-flat 6W 2700K/3000/4000K COLORselect Weiß
Add to selection
General information
Ordercode YESSS
7608-8426
Product code
6929-099060
EAN code
4255678608126
Product group
Downlight/spot/floodlight
Brand
Dotlux
Type
6929-099060
DOTLUX LED-Downlight CIRCLEmini-flat 6W 2700K/3000/4000K COLORselect Weiß
DOTLUX LED-Downlight CIRCLEmini-flat 6W 2700K/3000/4000K COLORselect Weiß
STOCK
IN STOCK
16
piece
Product description
25° Schwenkbare Linse ermöglicht gezielte Ausrichtung des Lichtkegels Sehr flaches Design ideal für Decken mit begrenztem Einbauplatz Erhältlich in drei Farbvarianten Schwarz, Edelstahl und Weiß Inklusive externer FAST connect Netzteilbox mit vormontierter Schnellanschlussklemme zur Durchverdrahtung für zeitsparende Installation COLOR-Select mit flexibler Lichtsteuerung einfache Auswahl der Farbtemperatur (2700K / 3000K / 4000K) je nach Bedarf Phasenan- und Phasenabschnittdimmbar stufenlose Anpassung der Helligkeit für optimale Lichtstimmung
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
Adjustability
Swivelling
With light source
Yes
Housing colour
White
Suitable for low voltage cable system
No
With light sensor
No
Light distribution
Symmetric
Suitable for number of light sources
1
Type of control gear
LED operating device current-controlled
Suitable for lamp power
6 - 6 W
With control gear
Yes
Surface protection
Powder coating
Max. system power
6 W
Colour temperature
2700 - 4000 K
Housing material
Aluminium
Material cover
Other
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Beam angle
41-80° - Wide beam
Dimming potentiometer (integrated)
No
Length
82 mm
Width
82 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
27 mm
Voltage type
AC/DC
Dimming mains voltage modulation
No
Outer diameter
82 mm
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
80-89
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class according to IEC 61140
II
Dimming Touch and Dim
No
Impact strength
IK08
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Light distributor
Refractor lens
Covering of the luminaire with thermally insulating material possible
No
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
60000 h
Degree of protection (NEMA)
2
Rated ambient temperature according to IEC 62722-2-1
-10 - 40 °C
Type of wiring
Suitable for loop-through wiring
Number of poles
2
Connectable conductor cross section
0.75 - 2.5 mm²
Connection type
Other
Suitable for workplace according to EN 12464-1
No
Colour consistency (McAdam ellipse)
SDCM4
Suitable for wall mounting
Yes
Exchangeable control gear
Yes
Dimming DALI-2
No
Constant light output (CLO)
Yes
Colour of light adjustable
Positions
Luminous flux adjustable
No
Beam angle adjustable
No
Built-in diameter
68 - 68 mm
Max. number of luminaires per miniature circuit breaker B16 (MCB)
130
Max. number of luminaires per miniature circuit breaker C16 (MCB)
150
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Operation by Bluetooth
No
