DOTLUX LED downlight SENSOlight 12W 3000K with daylight and motion
Add to selection
General information
Ordercode YESSS
7595-1218
Product code
6421-030036
EAN code
4255678604395
Product group
Downlight/spot/floodlight
Brand
Dotlux
Type
6421-030036
DOTLUX LED downlight SENSOlight 12W 3000K with daylight and motion
DOTLUX LED downlight SENSOlight 12W 3000K with daylight and motion sensor
STOCK
IN STOCK
3
piece
Product description

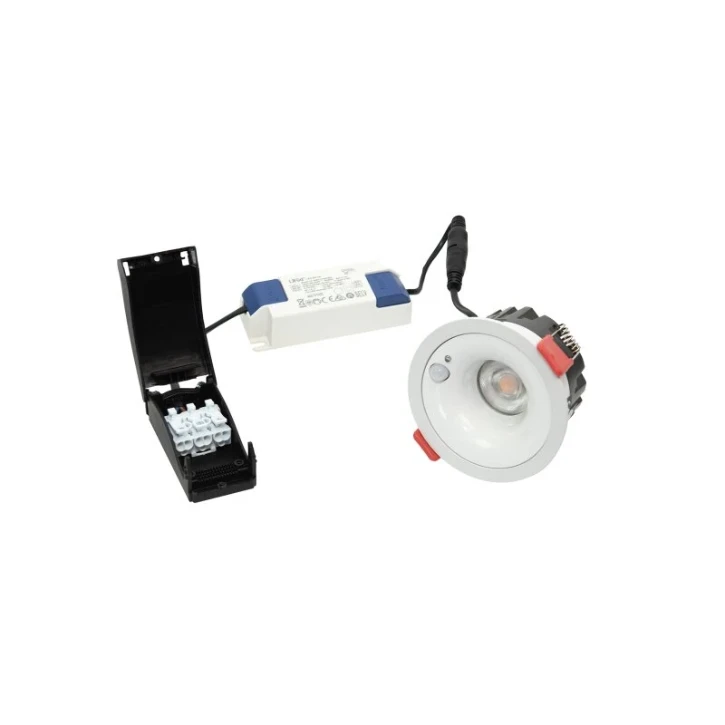

Stand-alone sensor downlight with the best price-performance ratioFixed values of 20 lux for the daylight sensor and an automatic switch-off time of 120 seconds for the motion sensorQuick, space-saving installation with through-wirable quick connection boxBayonet lock enables easy disconnection and replacement of the light from the power supply unitFor installation openings with 75mmGlare-free luminaire design thanks to recessed opticsDetection range of the sensor is 3 meters with a detection angle of 120
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
Yes
Adjustability
Not adjustable
With light source
Yes
Housing colour
White
Suitable for low voltage cable system
No
With light sensor
Yes
Reflector
None
Light distribution
Symmetric
Suitable for number of light sources
1
Lamp holder
Other
Type of control gear
LED operating device voltage-controlled
Suitable for lamp power
12 - 12 W
With control gear
Yes
Surface protection
Powder coating
Nominal current
105 - 105 mA
Max. system power
12 W
Surface brushed
No
Colour temperature
3000 - 3000 K
Housing material
Aluminium
Material cover
Without cover
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Beam angle
21-40° - Medium beam
Dimming potentiometer (integrated)
No
Length
85 mm
Width
85 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
50 mm
Voltage type
AC
Dimming mains voltage modulation
No
Outer diameter
85 mm
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
90-100
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class according to IEC 61140
II
Dimming Touch and Dim
No
Impact strength
IK04
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Light distributor
Reflector
Covering of the luminaire with thermally insulating material possible
No
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
80000 h
Degree of protection (NEMA)
Other
Rated ambient temperature according to IEC 62722-2-1
-30 - 50 °C
Power factor
0.5
Type of wiring
Ending
Connection type
Push-in clamp
Suitable for workplace according to EN 12464-1
No
Filament test according to IEC 60695-2-11
750 °C - 30 s
Photobiological safety according to EN 62471
RG0
Colour consistency (McAdam ellipse)
SDCM4
Suitable for wall mounting
No
Exchangeable control gear
No
Dimming DALI-2
No
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Built-in diameter
75 - 75 mm
IFTTT support available
No
Unified Glare Ratio (UGR)
6
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Operation by Bluetooth
No
Reflector colour
White
Product information
