DOTLUX LED-Feuchtraumleuchte MISTRALsmart 35/43/51/58W 4000K POWERselect IP65 1500mm durchverdrahtet

  • 7614-8586
  • |
  • 5434-240150
0 piece in stock
Login to order
Don’t have an account? Request account
  • Products Over 6.000 products in stock
  • Order before 17:00 and receive your order the next working day!
  • Need help? Call --- --- or contact us via email at [email protected]

General information

DOTLUX LED-Feuchtraumleuchte MISTRALsmart 35/43/51/58W 4000K POWERselect IP65 1500mm durchverdrahtet DOTLUX LED-Feuchtraumleuchte MISTRALsmart 35/43/51/58W 4000K POWERselect IP65 1500mm durchverdrahtet
Ordercode YESSS
7614-8586
Product code
5434-240150
EAN code
4255678607174
Product group
Ceiling-/wall luminaire
Brand
Dotlux
Type
5434-240150

Product description

Über eine integrierte Sensorschnittstelle kann ein Radar- oder PIR-Sensor jederzeit von außen eingeschraubt werden. Die optionalen Sensoren lassen sich bequem vom Boden aus per Fernbedienung einstellen. Die Montage erfolgt schnell und werkzeuglos über Twistlock-Anschlusskappen mit 3-poliger Durchverdrahtung und Schnellanschlussklemmen. Die Leistung ist über POWERselect anpassbar (35/43/51/58W). Eine hocheffiziente LED-Platine sorgt für eine Leuchteneffizienz von bis zu 170lm/W. Die LED-Platine lässt sich zur Wartung oder zum Austausch einfach herausziehen. Das Gehäuse besteht vollständig aus bruchsicherem, UV-stabilem Polycarbonat mit hoher Schlagfestigkeit (IK08). Die Montageklammern sind frei an der Leuchte positionierbar, sodass vorhandene Befestigungspunkte weiterverwendet werden können. Das Montagezubehör für Decken-, Wand- oder abgehängte Montage ist im Lieferumfang enthalten. Der extra breite Abstrahlwinkel von 150° sorgt für eine gleichmäßige Lichtverteilung. Das D-Zeichen dieser Leuchte mit begrenzter Oberflächentemperatur ist eine Grundvoraussetzung für Leuchten in feuergefährdenden Stätten (DIN EN 60598-2-24, VDE 0711-2-24)

Product specifications

Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
348
Type of control gear
LED operating device voltage-controlled
With control gear
Yes
Suitable for emergency lighting
Yes
Nominal voltage
230 - 230 V
Colour temperature
4000 - 4000 K
Housing material
Plastic
Dimming 0-10 V
No
Dimming 1-10 V
No
Housing colour
Grey
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Material cover
Plastic matt/satinized
Dimming DSI
No
Suitable for workplace according to EN 12464-1
No
Dimming potentiometer (integrated)
No
Type of grid
None
Dimming manufacturer's proprietary system
No
Light distribution
Symmetric
Dimming mains voltage modulation
No
Beam angle
> 80° - Extreme wide beam
Dimming phase cut-off (trailing edge)
No
Light outlet
Direct
Dimming phase cut-on (leading edge)
No
Length
1500 mm
Dimming programmable
No
Width
62 mm
Dimming RF
No
Height/depth
59 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
With movement sensor
No
Light distributor
None
With light sensor
No
Protection class according to IEC 61140
I
Impact strength
IK08
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Covering of the luminaire with thermally insulating material possible
No
Max. system power
58 W
With air slots
No
Voltage type
AC
Rated lifetime L70/B50 at 25 °C
100000 h
Colour of light
White
Colour rendering index CRI
80-89
Degree of protection (NEMA)
Other
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
Filament test according to IEC 60695-2-11
850 °C - 30 s
Suitable for lamp power
58 - 58 W
Power factor
0.9
Type of wiring
Loop-through wiring included
Conductor cross section
1.5 mm²
Connection type
Screwed terminal
Surface protection housing
Other
Exchangeable control gear
Yes
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM3
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
91.93 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
88.36 %
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)
82.73 %
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
1.5 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
2.5 %
Failure rate at median useful life of 75,000 h at 25 °C ambient (tq)
20 %
Max. number of luminaires per miniature circuit breaker B16 (MCB)
28
Max. number of luminaires per miniature circuit breaker C16 (MCB)
39
Stroboscope effect value SVM
0.4
Constant light output (CLO)
No
Photobiological safety according to EN 62471
RG0
Unified Glare Ratio (UGR)
29
Colour of light adjustable
No
Luminous flux adjustable
Positions
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Compatible with Casambi
No
Manufacturer's website

Recommended products

Electrical accessories/spare parts for luminaires Dotlux

DOTLUX Radar motion sensor for MISTRALsmart

€ 27,89 /

€ 29,99 Gross price

0 | 7561-3216

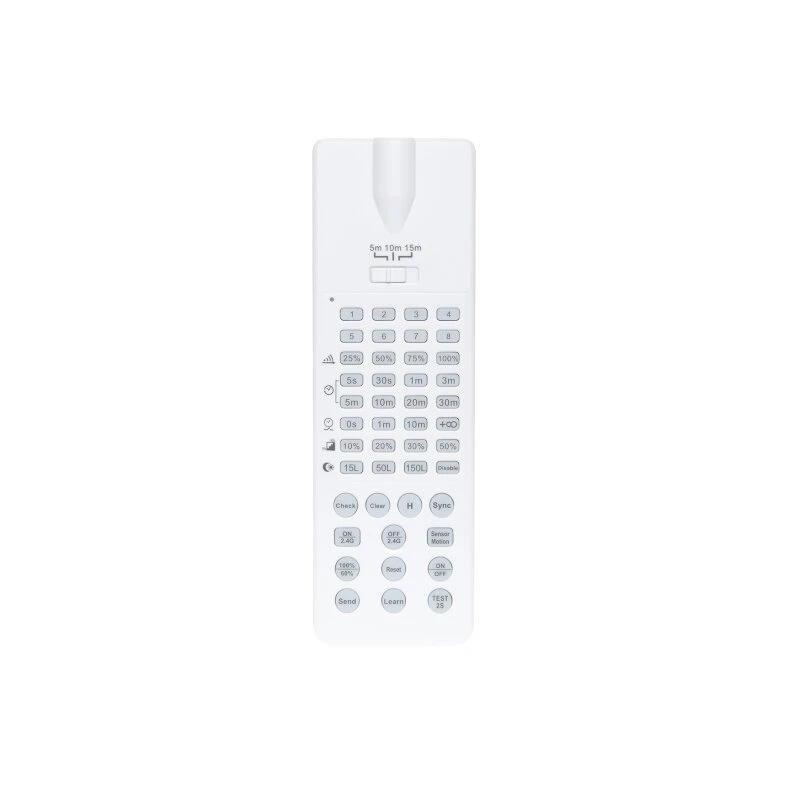

Remote control Dotlux
