General information

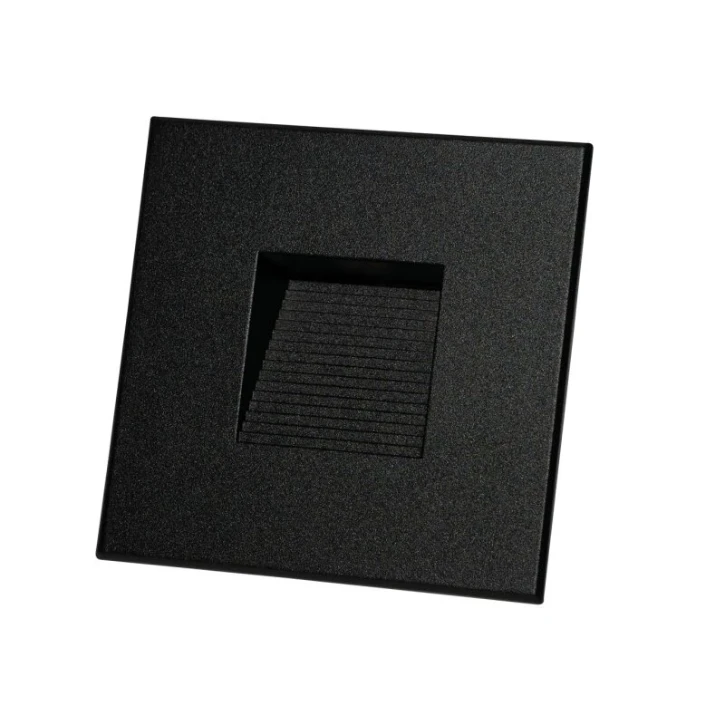

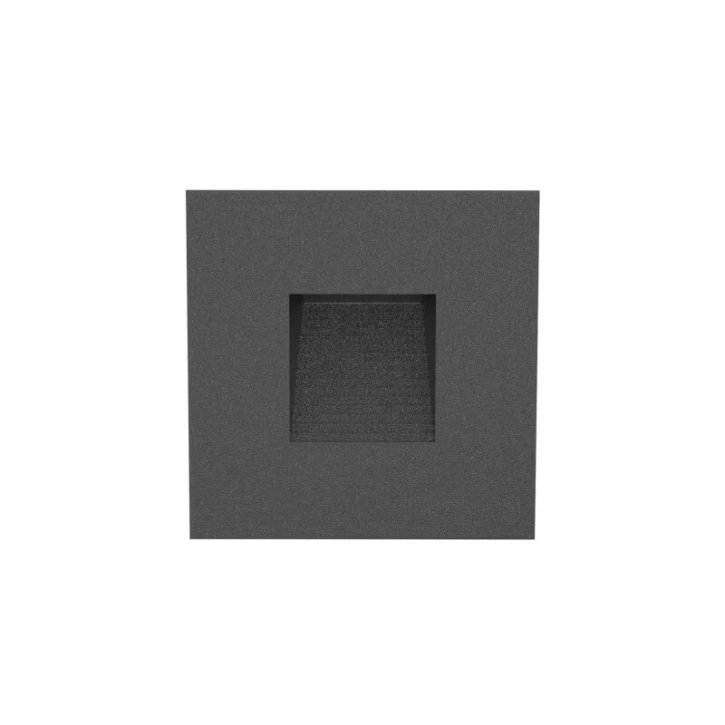

DOTLUX LED staircase light EASYSTAIR 1.5 W 3000K black
DOTLUX LED staircase light EASYSTAIR 1.5 W 3000K black
Ordercode YESSS
7593-3244
Product code
5415-130080
EAN code
4255678604838
Product group
Ceiling-/wall luminaire
Brand
Dotlux
Type
5415-130080
Product description

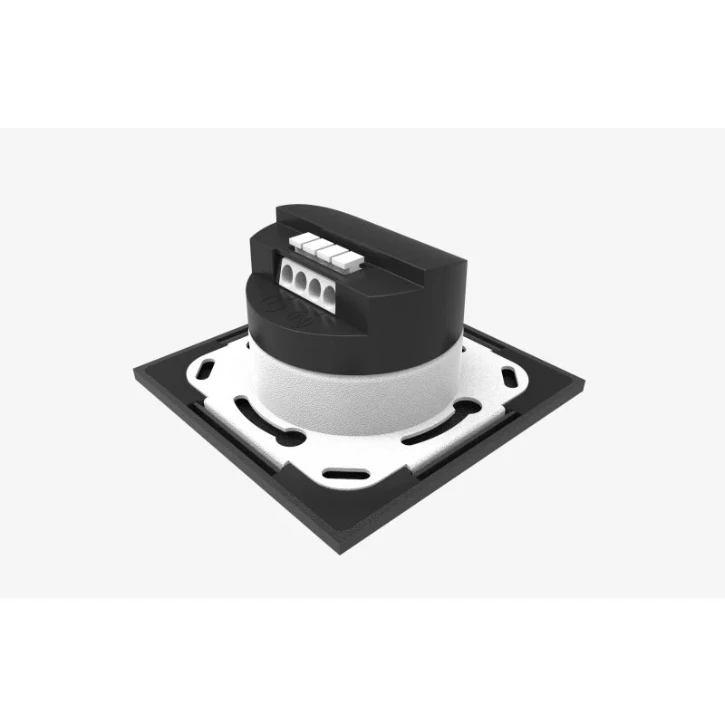

Thanks to its compact design, the screw-on step light fits into all appliance boxes/terminal boxes for cavity walls and flush-mounted installationInstallation also possible in Swiss appliance boxesQuick and easy installation thanks to the integrated 230V power supply unit and magnetic coverSpace-saving through-wiring with integrated push-in terminal blockEasy to align thanks to four large keyholes with additional support surface for spirit levelsGlare-free illumination of steps thanks to concealed arrangement of the illuminated surface with only 1.5 W energy consumptionAvailable in 3 different colors
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Lamp type
LED not exchangeable
With light source
Yes
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
230 - 230 V
Nominal current
0.02 - 0.02 mA
Colour temperature
3000 - 3000 K
Housing material
Aluminium
Dimming 0-10 V
No
Dimming 1-10 V
No
Housing colour
Black
Dimming DALI
No
Suitable for light line configuration
Yes
Dimming DMX
No
Material cover
Plastic matt/satinized
Dimming DSI
No
Suitable for workplace according to EN 12464-1
No
Dimming potentiometer (integrated)
No
Dimming manufacturer's proprietary system
No
Light distribution
Symmetric/asymmetric
Dimming mains voltage modulation
No
Beam angle
41-80° - Wide beam
Dimming phase cut-off (trailing edge)
No
Light outlet
Direct/indirect
Dimming phase cut-on (leading edge)
No
Length
82 mm
Dimming programmable
No
Width
82 mm
Dimming RF
No
Height/depth
43 mm
Outer diameter
150 mm
Dimming Touch and Dim
No
Built-in length
53 mm
Dimming Zigbee
No
Built-in width
53 mm
Dimming with push-button
No
Built-in height/depth
40 mm
Built-in diameter
53 mm
With movement sensor
No
Light distributor
Diffuser lens/optic/panel
Protection class according to IEC 61140
II
Impact strength
IK04
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Max. system power
1.5 W
With air slots
No
Voltage type
AC
Rated lifetime L70/B50 at 25 °C
80000 h
Colour of light
White
Colour rendering index CRI
90-100
Degree of protection (NEMA)
4X
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power
1.5 - 1.5 W
Power factor
0.47
Type of wiring
Ending
Conductor cross section
0.5 mm²
Connection type
Cable
Surface protection housing
Lacquered
Exchangeable control gear
No
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM6
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
98 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
96 %
Max. number of luminaires per miniature circuit breaker B16 (MCB)
350
Max. number of luminaires per miniature circuit breaker C16 (MCB)
550
Flickering value Pst LM
0.9
Stroboscope effect value SVM
0.4
Constant light output (CLO)
Yes
Photobiological safety according to EN 62471
RG1
Unified Glare Ratio (UGR)
2
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Compatible with Casambi
No
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
Yes
