General information

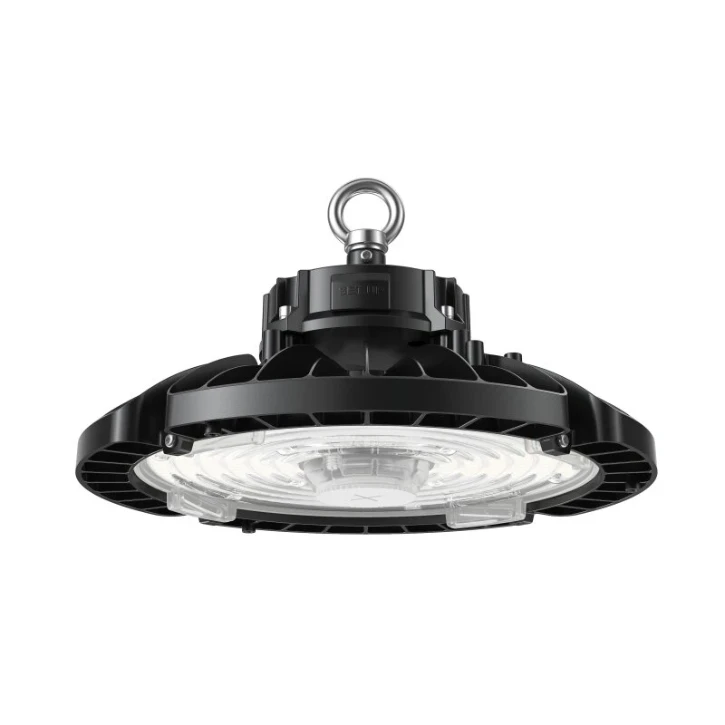

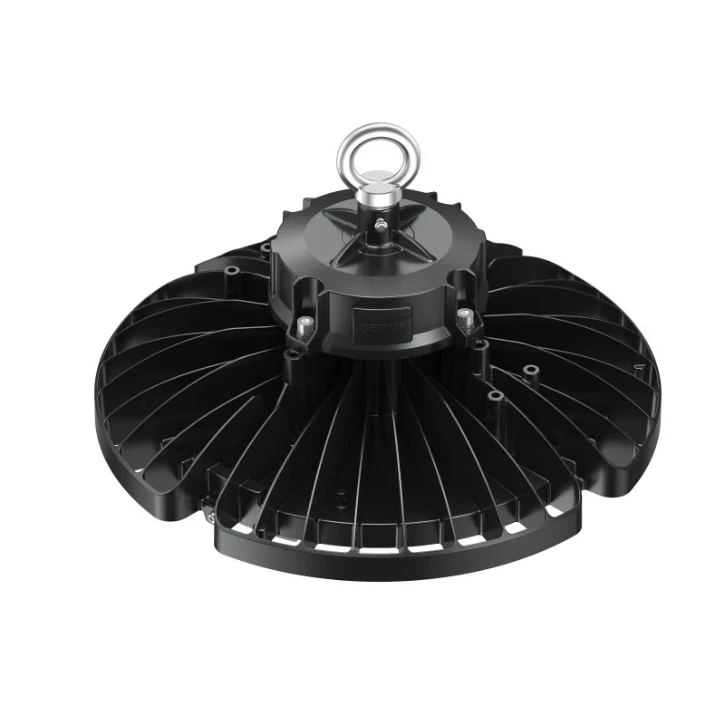

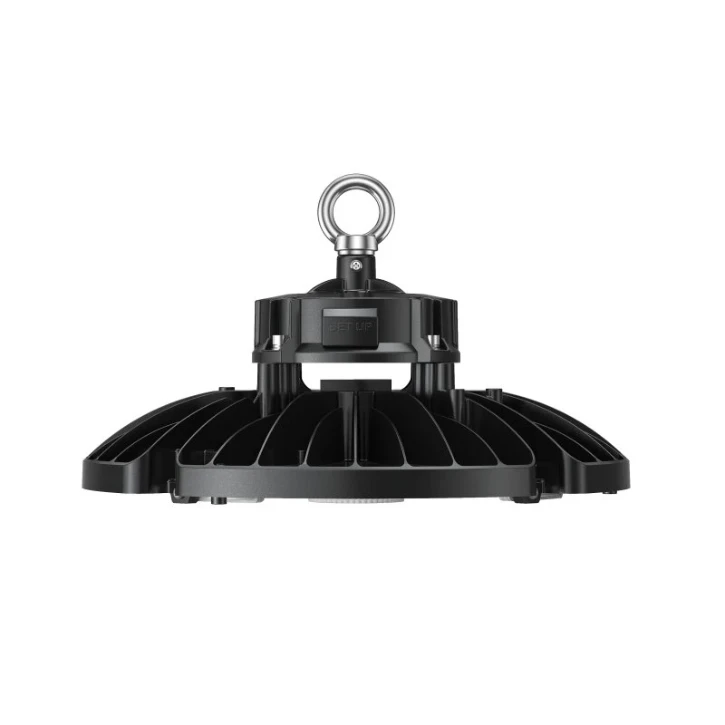

DOTLUX LED high bay floodlight LIGHTSHOWERsmart-plus Max.120W 4000K Power Select
DOTLUX LED high bay floodlight LIGHTSHOWERsmart-plus Max.120W 4000K Power Select
Ordercode YESSS
7587-9571
Product code
5369-240105
EAN code
4255678603657
Product group
Downlight/spot/floodlight
Brand
Dotlux
Type
5369-240105
Product description
The integrated pressure equalization valve ensures balanced air pressure conditions in the housing, which increases the durability of the high bay spotlight and prevents the ingress of moisture or dust.Versatile beam angles: adjustable beam angles of 65°, 90° and 105° directly on the device enable flexible lighting that can be adapted to requirements.Highly efficient: With an efficiency of up to 188lm/W, the LIGHTSHOWERsmart-plus offers outstanding light output with minimal energy consumption.Smart accessories: With the optional sensors, which offer functions such as daylight sensor, grouping function and daylight harvesting, the lighting is intelligently controlled and optimized.Powerful performance: The POWERselect function allows the brightness to be adjusted at any time and has a positive effect on the energy balance.
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
No
Suitable for suspended mounting
Yes
Lamp type
LED not exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
Adjustability
Not adjustable
With light source
Yes
Housing colour
Black
Suitable for low voltage cable system
No
With light sensor
No
Reflector
High-gloss
Light distribution
Symmetric
Suitable for number of light sources
520
Type of control gear
LED operating device current-controlled
With control gear
Yes
Surface protection
Powder coating
Nominal current
520 - 520 mA
Max. system power
120 W
Surface brushed
No
Nominal voltage
230 - 230 V
Colour temperature
4000 - 4000 K
Housing material
Aluminium
Material cover
Plastic, opal
Dimming 0-10 V
Yes
Dimming 1-10 V
Yes
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Beam angle
Variable beam angle
Dimming potentiometer (integrated)
No
Length
270 mm
Width
270 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
175 mm
Voltage type
AC
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
80-89
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class according to IEC 61140
I
Dimming Touch and Dim
No
Impact strength
IK08
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Light distributor
Diffuser lens/optic/panel
Covering of the luminaire with thermally insulating material possible
No
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
100000 h
Degree of protection (NEMA)
Other
Rated ambient temperature according to IEC 62722-2-1
-30 - 50 °C
Power factor
0.95
Type of wiring
Ending
Number of poles
3
Conductor cross section
1 mm²
Connectable conductor cross section
1 - 1 mm²
Connection type
Crimping
Suitable for workplace according to EN 12464-1
No
Filament test according to IEC 60695-2-11
750 °C - 30 s
Photobiological safety according to EN 62471
RG0
Colour consistency (McAdam ellipse)
SDCM5
Suitable for wall mounting
No
Exchangeable control gear
No
Dimming DALI-2
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
79.66 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
92.88 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
89.5 %
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
5 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
7 %
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
10 %
Constant light output (CLO)
No
Colour of light adjustable
No
Luminous flux adjustable
Positions
Beam angle adjustable
Positions
Max. number of luminaires per miniature circuit breaker B16 (MCB)
18
Max. number of luminaires per miniature circuit breaker C16 (MCB)
18
IFTTT support available
No
Unified Glare Ratio (UGR)
28
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Reflector colour
Other
