Downlight/spot/floodlight Dotlux
Add to selection
General information
Ordercode YESSS
7531-1986
Product code
5142-040120
EAN code
4260629149597
Product group
Downlight/spot/floodlight
Brand
Dotlux
Type
5142-040120

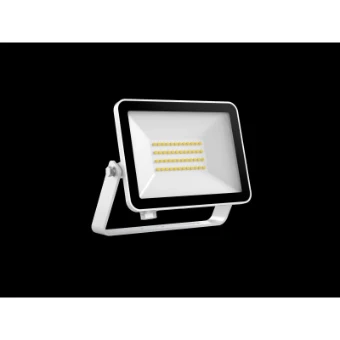

DOTLUX LED spotlight FLOORslim 30W 4000K white
DOTLUX LED spotlight FLOORslim 30W 4000K white
Product description
Solid, waterproof, die-cast aluminum housing with efficient cooling and high-quality powder coating from Akzo NobelReliable operation thanks to brand LEDs from LUMILEDS and capacitorless power supply unit with 2kV overvoltage protectionESG safety glass - ULTRA CLEAR - highly transparent glass for excellent light color and improved light outputCurved mounting bracket enables easy installation without having to dismantle the bracket (freely rotatable 320°)Incl. 1m white UV-stable rubber cable (H05RN-F open ends)
Product specifications
Adjustability
Swivelling
Housing colour
White
Max. system power
30 W
Colour temperature
4000 - 4000 K
Housing material
Aluminium
Material cover
Glass transparent
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Beam angle
> 80° - Extreme wide beam
Dimming potentiometer (integrated)
No
Length
195 mm
Width
174 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
35 mm
Voltage type
AC
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
80-89
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class according to IEC 61140
I
Dimming Touch and Dim
No
Impact strength
IK08
Dimming Zigbee
No
Dimming with push-button
No
Covering of the luminaire with thermally insulating material possible
No
Rated lifetime L70/B50 at 25 °C
70000 h
Power factor
0.9
Type of wiring
Ending
Suitable for workplace according to EN 12464-1
No
Colour consistency (McAdam ellipse)
SDCM6
Dimming DALI-2
No
Colour of light adjustable
No
Luminous flux adjustable
No
Max. number of luminaires per miniature circuit breaker B16 (MCB)
30
Max. number of luminaires per miniature circuit breaker C16 (MCB)
30
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
