LED power supply CC for QUICK-FIXdc 6-50W 100-1400mA 25-54V DALI
- 7575-6190
- |
- 5047
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

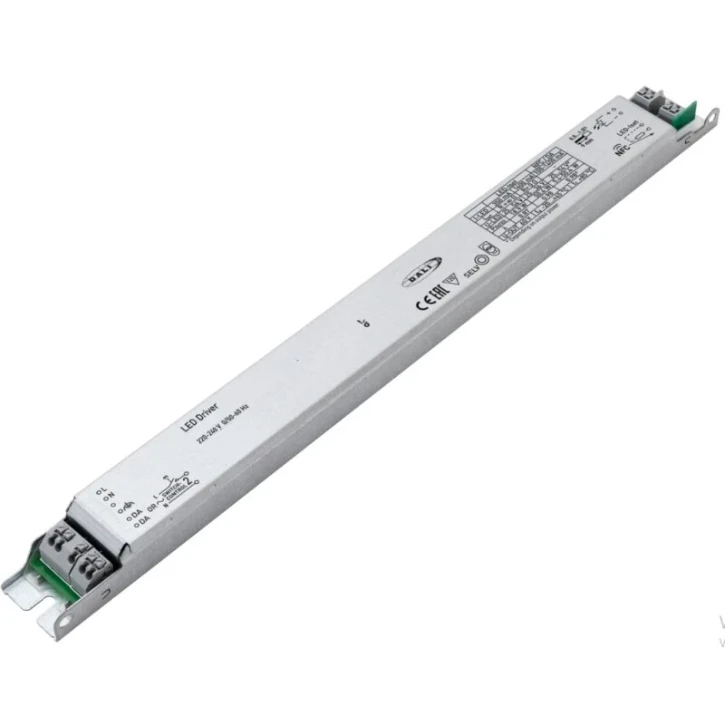

LED power supply CC for QUICK-FIXdc 6-50W 100-1400mA 25-54V DALI
LED power supply CC for QUICK-FIXdc 6-50W 100-1400mA 25-54V DALI dimmable NFC linear Factory-set 350mA/1400mA
Ordercode YESSS
7575-6190
Product code
5047
EAN code
4255678602353
Product group
LED driver
Brand
Dotlux
Type
5047
Product description
DALI-2 certified LED driver, 1-100 % dimming rangeSELV output protection for safety and flexibility in luminairesAmplitude dimming for the highest quality of light output, in accordance with the IEEE 1789 recommendationNFC technology for wireless programmingSuitable for use in emergency lighting applicationsIdeal solution for Class I and Class IIFactory setting of the operating current 350mA/1400mA
Product specifications
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DSI
No
Dimming DMX
No
Output voltage
25 - 54 V
Degree of protection (IP)
IP20
Dimming potentiometer (integrated)
No
Output current
0.1 - 1.4 mA
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Length
360 mm
Dimming mains voltage modulation
No
Protection class according to IEC 61140
II
Width
30 mm
Dimming phase cut-off (trailing edge)
No
Height
21 mm
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Compatible with Casambi
No
Power consumption
50 W
