General information
DOTLUX LED house number light WALLsquare 24cm 2.5W 3000K with

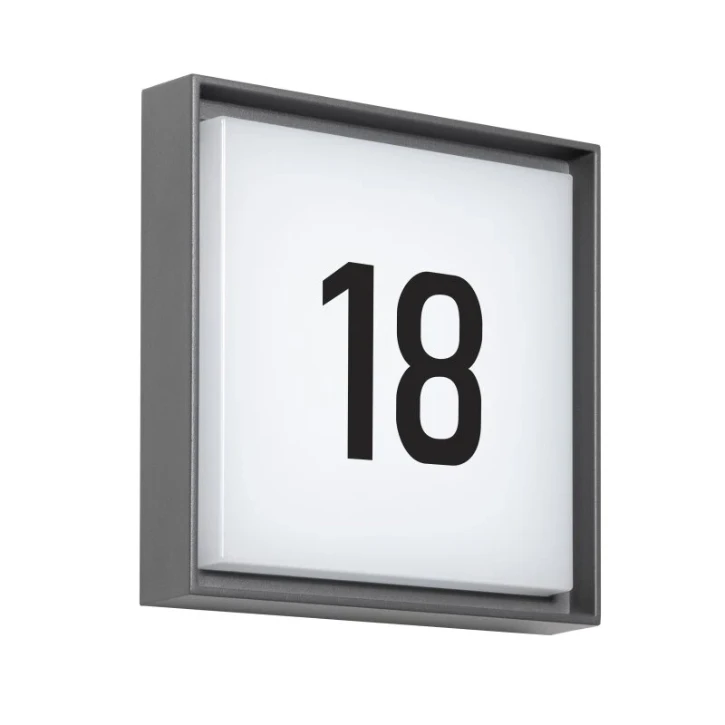

DOTLUX LED house number light WALLsquare 24cm 2.5W 3000K with twilight switch (can be deactivated)
Ordercode YESSS
7593-3241
Product code
5046-130120
EAN code
4255678604555
Product group
Ceiling-/wall luminaire
Brand
Dotlux
Type
5046-130120
Product description
High-quality aluminum housing with powder coating in RAL7016Robust, splash-proof design for outdoor use with IP 65 protectionGlare-free, homogeneous and shadow-free light distributionEasyBase platform enables quick and easy installationWith twilight switchMounting accessories includedInsect-friendly lighting thanks to warm white LEDHousing color similar to RAL 7016Order the house number set 4751 separately:This includes 3 sets of numbers (0 - 9) and one set of letters each in upper case (A - H) and lower case (a - h) with a letter height of 8.5 cm
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Type of control gear
LED operating device current-controlled
With control gear
No
Suitable for emergency lighting
No
Nominal voltage
230 - 230 V
Colour temperature
3000 - 3000 K
Housing material
Aluminium
Dimming 0-10 V
No
Dimming 1-10 V
No
Housing colour
Black
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Material cover
Plastic, opal
Dimming DSI
No
Suitable for workplace according to EN 12464-1
No
Dimming potentiometer (integrated)
No
Type of grid
Matt
Dimming manufacturer's proprietary system
No
Light distribution
Symmetric
Dimming mains voltage modulation
No
Beam angle
> 80° - Extreme wide beam
Dimming phase cut-off (trailing edge)
No
Light outlet
Direct
Dimming phase cut-on (leading edge)
No
Length
235 mm
Dimming programmable
No
Width
235 mm
Dimming RF
No
Height/depth
65 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
With movement sensor
No
Light distributor
Diffuser lens/optic/panel
With light sensor
Yes
Protection class according to IEC 61140
I
Impact strength
IK08
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Covering of the luminaire with thermally insulating material possible
No
Max. system power
2.5 W
With air slots
No
Voltage type
AC
Rated lifetime L70/B50 at 25 °C
60000 h
Colour of light
White
Colour rendering index CRI
80-89
Degree of protection (NEMA)
3
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
Suitable for lamp power
2.5 - 2.5 W
Power factor
0.9
Conductor cross section
0.75 mm²
Surface protection housing
Powder coating
Exchangeable control gear
No
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Compatible with Casambi
No
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
Yes
