LED power supply CC for QUICK-FIXdc 15-50W 350-1400mA 25-54V non-dimmable
- 7575-6189
- |
- 5043
18
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

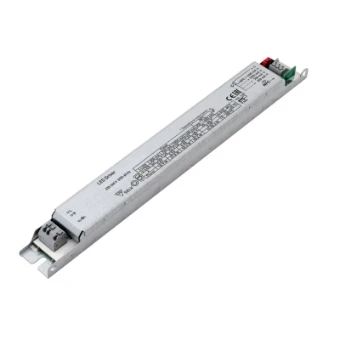

LED power supply CC for QUICK-FIXdc 15-50W 350-1400mA 25-54V non-dimmable
LED power supply CC for QUICK-FIXdc 15-50W 350-1400mA 25-54V non-dimmable NFC linear pre-programmed outputs 350/700/1050/1400mA
Ordercode YESSS
7575-6189
Product code
5043
EAN code
4260629147814
Product group
LED driver
Brand
Dotlux
Type
5043
Product description
SELV output protection for safety and flexibility in luminairesVery low current ripple, in accordance with the IEEE 1789 recommendationNFC technology for wireless programmingWide selection range for the fixed current outputSuitable for use in emergency lighting applicationsActive open-circuit protectionLong service life of up to 100,000 hoursIdeal solution for class I and class II luminairesAdjustable operating current: 350/700/1050/1400mA
Product specifications
Output power
10 - 50 W
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DSI
No
Dimming DMX
No
Output voltage
25 - 54 V
Degree of protection (IP)
IP20
Dimming potentiometer (integrated)
No
Output current
0.35 - 1.4 mA
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Length
280 mm
Dimming mains voltage modulation
No
Protection class according to IEC 61140
II
Width
30 mm
Dimming phase cut-off (trailing edge)
No
Height
21 mm
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Compatible with Casambi
No
Power consumption
50 W
