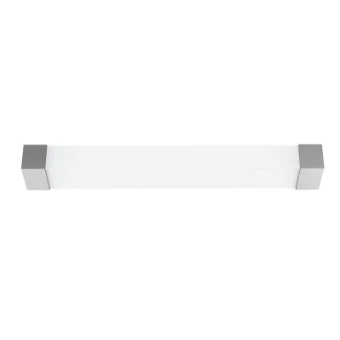

DOTLUX Mirror light TRENDO 10W 3000/4000/5700K COLORselect
Add to selection
General information
Ordercode YESSS
6972-9241
Product code
4993-0FW140
EAN code
4260629146367
Product group
Ceiling-/wall luminaire
Brand
Dotlux
Type
4993-0FW140
DOTLUX Mirror light TRENDO 10W 3000/4000/5700K COLORselect
DOTLUX Mirror light TRENDO 10W 3000/4000/5700K COLORselect
STOCK
IN STOCK
12
piece
Product description
Modern, stylish designMaximum illuminated area without visible screw connectionsEASYbase platform enables quick and easy installationMounting on existing drill holes possible due to free surface on the base plate2 cable inlets pre-installed (individual inlets can be drilled into the aluminum base if required)Simply set your desired light color yourself, one article number - three light colors through COLORselectSustainable product design thanks to easily replaceable components
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for number of light sources
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Colour temperature
3000 - 5700 K
Housing material
Other
Dimming 0-10 V
No
Dimming 1-10 V
No
Housing colour
Multi-coloured
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Material cover
Plastic matt/satinized
Dimming DSI
No
Suitable for workplace according to EN 12464-1
No
Dimming potentiometer (integrated)
No
Type of grid
None
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Beam angle
> 80° - Extreme wide beam
Dimming phase cut-off (trailing edge)
No
Light outlet
Direct
Dimming phase cut-on (leading edge)
No
Length
600 mm
Dimming programmable
No
Width
85 mm
Dimming RF
No
Height/depth
57 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
With movement sensor
No
Light distributor
Other
With light sensor
No
Protection class according to IEC 61140
I
Impact strength
IK08
Covering of the luminaire with thermally insulating material possible
No
Max. system power
10 W
With air slots
No
Voltage type
AC/DC
Rated lifetime L70/B50 at 25 °C
100000 h
Colour of light
Multi-coloured
Colour rendering index CRI
80-89
Rated ambient temperature according to IEC 62722-2-1
-20 - 45 °C
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power
10 - 10 W
Power factor
0.95
Type of wiring
Ending
Connection type
Other
Surface protection housing
Other
Exchangeable control gear
No
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM4
Constant light output (CLO)
No
Photobiological safety according to EN 62471
Other
Unified Glare Ratio (UGR)
25
Colour of light adjustable
Positions
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Compatible with Casambi
No
