Downlight/spot/floodlight Dotlux

Add to selection
General information
Ordercode YESSS
6656-2765
Product code
4570-0FW090
EAN code
4260523597913
Product group
Downlight/spot/floodlight
Brand
Dotlux
Type
4570-0FW090

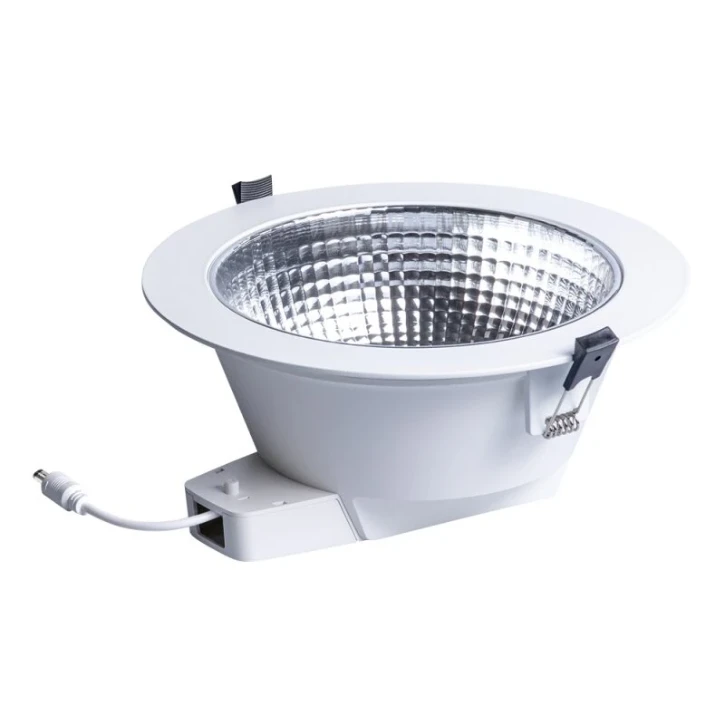

DOTLUX LED downlight CIRCLEugr-dim 21W 3000/4000/5700K COLORselect without driver DOTLUX LED downlight CIRCLEugr-dim 21W 3000/4000/5700K COLORselect without driver
Product description

COLORselect\": 3 light colors in one luminaire. The right light color can be set for every application environment.1.warm white 3,000 K: hotel, store, wellness/spa areas, home & living2.neutral white 4,000 K: office, catering, industry, sanitary facilities, retirement homes and hospitals3.daylight white 5,700 K: industry, conference rooms, educational institutions, officeGlare-free luminaire design (UGR )Faced multi-reflector ensures uniform illuminationTool-free terminal connection (through-wirable with integrated strain relief)Splash-proof housing design (IP 54 on the front)SmartCooling: room-side heat dissipation through aluminum reflectorDistance-free installation possibleSuitable for central battery

Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Housing colour
White
Suitable for low voltage cable system
No
Reflector
Other
Light distribution
Symmetric
Suitable for lamp power
21 - 21 W
Nominal current
700 - 700 mA
Max. system power
21 W
Surface brushed
No
Nominal voltage
27.8 - 27.8 V
Colour temperature
3000 - 5700 K
Housing material
Plastic
Material cover
Without cover
Dimming 1-10 V
Yes
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Beam angle
> 80° - Extreme wide beam
Dimming potentiometer (integrated)
No
Length
228 mm
Width
228 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
98 mm
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Colour of light
Multi-coloured
Dimming programmable
Yes
Colour rendering index CRI
80-89
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class according to IEC 61140
II
Dimming Touch and Dim
No
Impact strength
IK03
Dimming Zigbee
Yes
Dimming with push-button
No
Covering of the luminaire with thermally insulating material possible
Yes
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
100000 h
Rated ambient temperature according to IEC 62722-2-1
-20 - 45 °C
Power factor
0.9
Type of wiring
Ending
Connection type
Push-in clamp
Suitable for workplace according to EN 12464-1
Yes
Colour consistency (McAdam ellipse)
SDCM6
Suitable for wall mounting
No
Exchangeable control gear
No
Dimming DALI-2
Yes
Colour of light adjustable
Positions
Luminous flux adjustable
No
Beam angle adjustable
No
Built-in diameter
200 - 210 mm
Unified Glare Ratio (UGR)
19
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Operation by Bluetooth
No
more specifications
