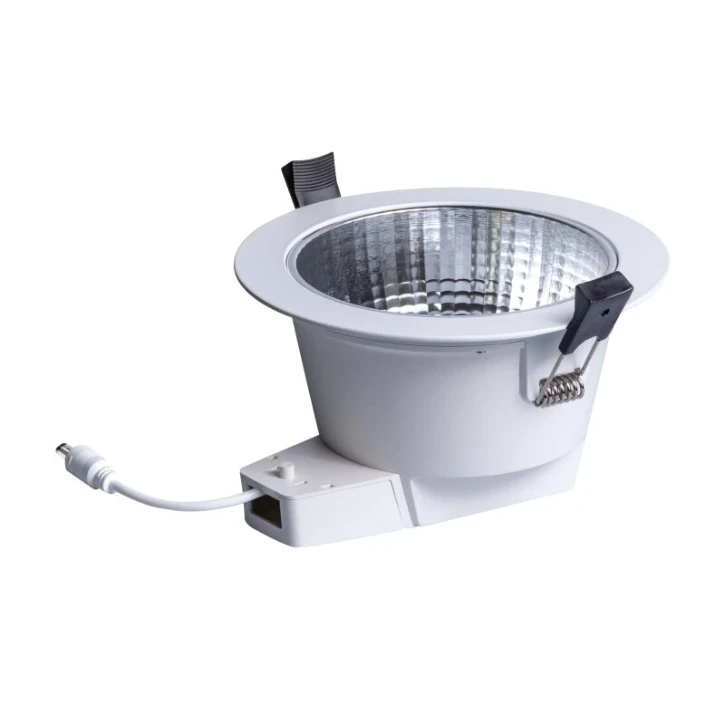

DOTLUX LED downlight CIRCLEugr-dim 11W 3000/4000/5700K COLORselect without driver

Add to selection
General information
Ordercode YESSS
6656-2771
Product code
4568-0FW090
EAN code
4260629140549
Product group
Downlight/spot/floodlight
Brand
Dotlux
Type
4568-0FW090
DOTLUX LED downlight CIRCLEugr-dim 11W 3000/4000/5700K COLORselect without driver DOTLUX LED downlight CIRCLEugr-dim 11W 3000/4000/5700K COLORselect without driver
STOCK
IN STOCK
0 piece
Product description

COLORselect\": 3 light colors in one luminaire. The right light color can be set for every application environment.Warm white 3,000 K: Hotel, store, wellness/spa areas, home & livingNeutral white 4,000 K: Office, catering, industry, sanitary facilities, retirement homes and hospitalsDaylight white 5,700 K: Industry, conference rooms, educational institutions, officeGlare-free luminaire design (UGR )Faced multi-reflector ensures uniform illuminationTool-free terminal connection (through-wirable with integrated strain relief)Splash-proof housing design (IP 54 on the front)SmartCooling: room-side heat dissipation through aluminum reflectorDistance-free installation possibleSuitable for central battery

Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Housing colour
White
Suitable for low voltage cable system
No
Reflector
Other
Light distribution
Symmetric
Type of control gear
Not required
Suitable for lamp power
11 - 11 W
With control gear
No
Max. system power
11 W
Surface brushed
No
Colour temperature
2700 - 5700 K
Housing material
Plastic
Material cover
Without cover
Beam angle
> 80° - Extreme wide beam
Length
145 mm
Width
145 mm
Height/depth
82 mm
Outer diameter
145 mm
Colour of light
Multi-coloured
Colour rendering index CRI
80-89
Protection class according to IEC 61140
II
Impact strength
IK03
Covering of the luminaire with thermally insulating material possible
Yes
Rated lifetime L70/B50 at 25 °C
100000 h
Rated ambient temperature according to IEC 62722-2-1
-20 - 45 °C
Power factor
0.9
Type of wiring
Suitable for loop-through wiring
Connectable conductor cross section
0.75 - 0.75 mm²
Connection type
Other
Suitable for workplace according to EN 12464-1
Yes
Colour consistency (McAdam ellipse)
SDCM6
Suitable for wall mounting
No
Exchangeable control gear
No
Colour of light adjustable
Positions
Luminous flux adjustable
No
Beam angle adjustable
No
Built-in diameter
125 - 135 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Operation by Bluetooth
No
Reflector colour
Silver
more specifications
