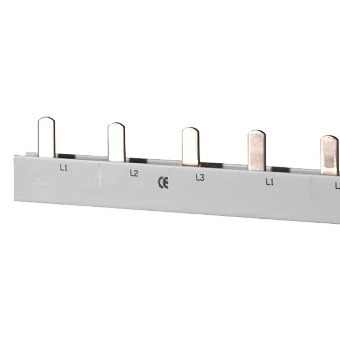

Phase busbar Doepke

These components for the wiring of circuit breakers in industrial. commercial and privately used electrical distribution units significantly reduce the installation work. The busbars in this series can be cut to length and are designed for the supply-side connection of D0 switch-disconnectors of type Tytan II and Coron 2. The bars with flange design are available in a wide range of variants in one to four-pole design with different cable cross-sections and provide time-saving and user-friendly processing options. Contact protection is required by end capping the EK series. Properties: can be used for connecting D0 switch disconnectors from series Tytan and Coron 2; wide range of variants; saves a lot of time during wiring; entire length approx. 1000 mm; can be cut to length; insulation of the open ends using optional "EK" end caps is recommended; Mounting: The rails are inserted in the upper or lower terminals of the devices to be connected. Application areas: Busbars from this series are used in connection with Tytan and Coron 2 in power supplies to residential and purpose-built buildings as well as to industrial facilities.
