Rail terminal bar Doepke
Add to selection
General information
Ordercode YESSS
09980140
Product code
09980140
EAN code
4014712049000
Product group
Rail terminal bar
Brand
Doepke

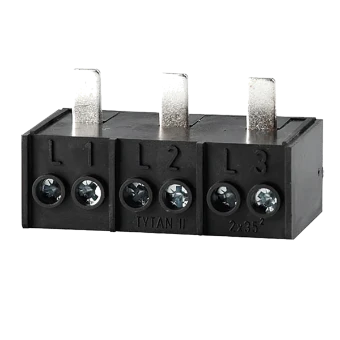

Connection terminal for D0 sw.-disconnectors 3-pole 3x2x35
Connection terminal for D0 sw.-disconnectors 3-pole 3x2x35
Product description
Terminals for busbars to supply switching devices. The Twin terminal facilitates the through-looping of all three supply lines to D0 switch-disconnectors. Properties: two input terminals available for each phase; permissible connector cross-section of 1.5 mm2 - 35 mm2.
Product specifications
Number of poles
3
Connection type
Screwing
Contact safe
No
Mounting method
Screw
Height
43.7 mm
Width
80.5 mm
Depth
28.8 mm
Number of inputs
1
Number of outputs
1
Suitable for solid conductors
Yes
Suitable for stranded conductors
No
Suitable for fine strand conductors
No
Suitable for fine strand conductors without cable end sleeve
Yes
Suitable for extra fine-strand conductors
No
Suitable for extra fine-strand conductors without cable end sleeve
Yes
Conductor cross section, input
1.5 - 35 mm²
Conductor cross section, input AWG
15 - 2
