Auxiliary device for distribution board devices Doepke

Add to selection

General information

Ordercode YESSS

09950012

Product code

09950012

EAN code

4014712130081

Product group

Auxiliary device for distribution board devices

Brand

Doepke

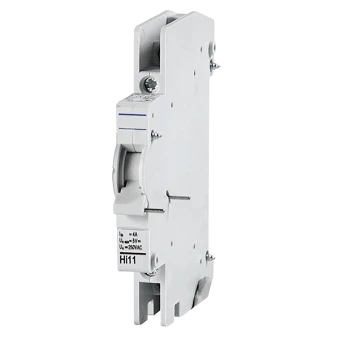

Auxiliary sw. for RCBO 1+N Type A, 250V, max. 4A, Auxiliary sw. for RCBO 1+N Type A, 250V, max. 4A, 1NC/1NO

Product description

Auxiliary switches report the status of the main devices to which they are fitted. The Hi 11 auxiliary switch is suitable for RCCB/MCB combinations of the DRCBO 3 series and miniature circuit breakers of the ELS 3 series.The Hi 11 auxiliary switch can be retro-fitted to an RCCB/MCB device from the DRCBO 3 series as well as miniature circuit-breakers from the ELS 3 series. Other signalling devices (buzzers, indicator lights. etc.) can then be used to indicate the operating status of a residual current circuit breaker. Properties: auxiliary switch function; retro-fittable; compact design; Mounting: mounting by clamping to the left of the basic device; quick fastening to mounting rail; any installation position; Application areas: These devices are suitable for querying the operating status of power supplies to residential and purpose-built buildings as well as to industrial facilities. Hints: The auxiliary switch does not affect the function of the basic device.

Product specifications

Number of fault-signal switches

Device fitting

Miniature circuit breaker (MCB)

Rated switch current

4 A

Rated voltage

250 V

With auto test for earth leakage function

Suitable for max. number of poles main contact unit (total)

Suitable for max. current main contact unit

40 A

Width in number of modular spacings

0.5

Number of contacts as normally open contact

Number of contacts as normally closed contact

Number of contacts as change-over contact

Function

Auxiliary switch / fault-signal switch

Voltage type

AC/DC
