Auxiliary sw. for DLS 6, 230V AC, max. 10A, 1NC/1NO
- 0988-5499
- |
- 09917985
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

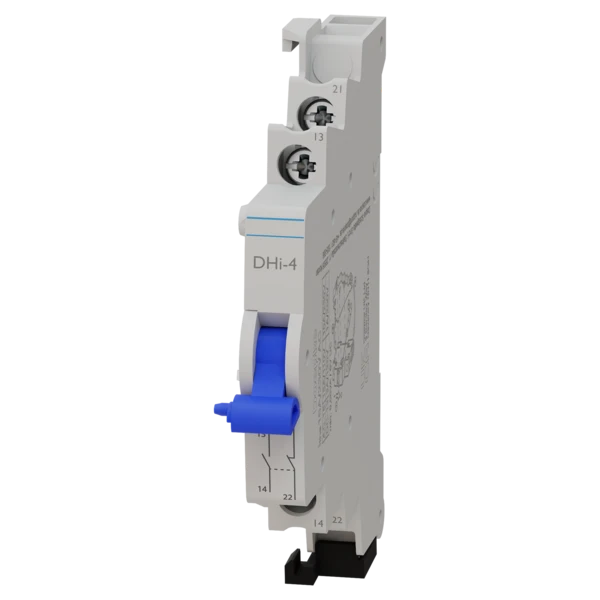

Auxiliary sw. for DLS 6, 230V AC, max. 10A, 1NC/1NO
Auxiliary sw. for DLS 6, 230V AC, max. 10A, 1NC/1NO
Ordercode YESSS
0988-5499
Product code
09917985
EAN code
4014712197282
Product group
Auxiliary device for distribution board devices
Brand
Doepke
Type
DHi 4
Product description
Auxiliary switches report the status of the main devices to which they are fitted. Auxiliary switches DHi 3 to DHi 8 can be retro-fitted to miniature circuit-breakers from series DLS 6 h, hsl or i. The auxiliary switch activates in parallel to the DLS 6 miniature circuit-breaker when switched off by hand or because of overload or short-circuit. Other indicators (buzzers, indicator light, etc.) can be used to display the operating status of a miniature circuit-breaker.
Product specifications
Number of fault-signal switches
0
Device fitting
Miniature circuit breaker (MCB)
Rated switch current
10 A
Rated voltage
230 V
With auto test for earth leakage function
No
Suitable for max. number of poles main contact unit (total)
4
Suitable for max. current main contact unit
125 A
Width in number of modular spacings
0.5
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
Number of contacts as change-over contact
0
Function
Auxiliary switch
Voltage type
AC
