General information

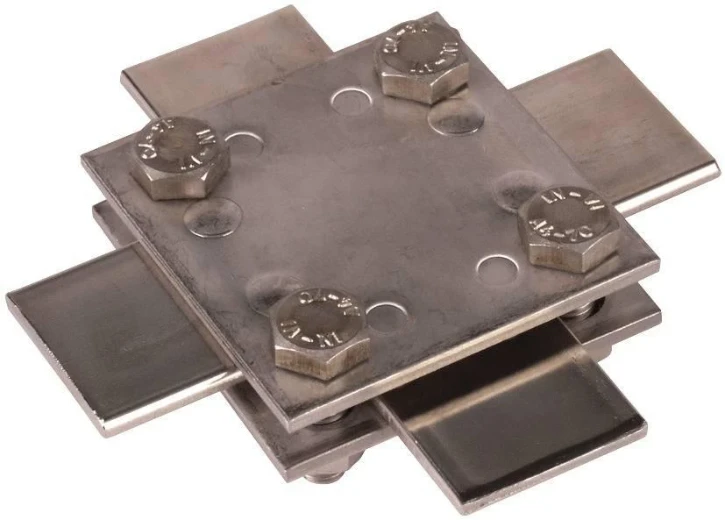

Kreuzstueck NIRO (V4A) f. Fl 30/30mm Abm. 60x60mm o. Zwischenplatte
Kreuzstueck NIRO (V4A) f. Fl 30/30mm Abm. 60x60mm o. Zwischenplatte
Ordercode YESSS
7545-0473
Product code
318233
EAN code
4013364096646
Product group
Connector for lightning protection
Brand
DEHN
Type
KS FL30 V4A
Product description
Kreuzstück nach DIN EN 62561-1, für ober- und unterirdische Verbindung von zwei Flachleitern. Ausführung ohne Zwischenplatte mit Schrauben M8.
Product specifications
Width flat conductor 1
30 - 30 mm
Material
Stainless steel 316 (V4A)
Surface protection
Untreated
Width flat conductor 2
30 - 30 mm
Type of fastening screws
Hexagon screw
Lightning current load-bearing capacity (10/350 µs)
100 kA
