Kreuzstueck NIRO (V4A) f. Rd 8-10/8-10mm Rd 8-10/Fl 30mm-Fl 30/30mm
- 7545-0480
- |
- 319209
18
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

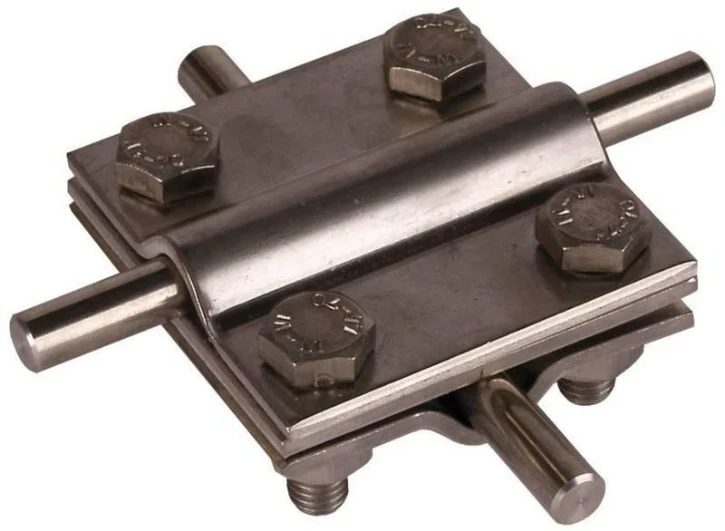

Kreuzstueck NIRO (V4A) f. Rd 8-10/8-10mm Rd 8-10/Fl 30mm-Fl 30/30mm
Kreuzstueck NIRO (V4A) f. Rd 8-10/8-10mm Rd 8-10/Fl 30mm-Fl 30/30mm m. Zwischenpl
Ordercode YESSS
7545-0480
Product code
319209
EAN code
4013364035980
Product group
Connector for lightning protection
Brand
DEHN
Type
KS 8.10 8.10 FL30 ZP V4A
Product description
Kreuzstück nach DIN EN 62561-1, für ober- und unterirdische Verbindung von Rund- und Flachleitern. Ausführung mit Zwischenplatte und Schrauben M8.
Product specifications
Diameter round conductor 1
8 - 10 mm
Width flat conductor 1
30 - 30 mm
Material
Stainless steel 316 (V4A)
Diameter round conductor 2
8 - 10 mm
Surface protection
Untreated
Width flat conductor 2
30 - 30 mm
Type of fastening screws
Hexagon screw
Lightning current load-bearing capacity (10/350 µs)
100 kA
