TE-Anschlussschelle NIRO (V4A) D 20mm f. Rd 7-10mm Fl -40mm
- 7545-0508
- |
- 620915
15
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

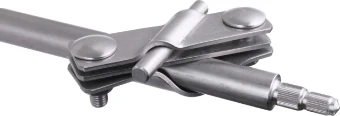

TE-Anschlussschelle NIRO (V4A) D 20mm f. Rd 7-10mm Fl -40mm
TE-Anschlussschelle NIRO (V4A) D 20mm f. Rd 7-10mm Fl -40mm
Ordercode YESSS
7545-0508
Product code
620915
EAN code
4013364026629
Product group
Connection clamp for earth rods
Brand
DEHN
Serie
Anschlussschellen
Type
AS S TE 20 7.10 FL40 V4A
Product description
Anschlussschelle nach DIN EN 62561-1, zum Anschluss von Rundleitern, Seilen und Flachbändern an Tiefenerdern. Ausführung schräg mit Flachrundschraube, auch für ungeschnittene Erdleitungen.
Product specifications
Construction type
Terminal bracket
Diameter earthing connection
20 - 20 mm
Clamping range round conductor
7 - 10 mm
Clamp width flat conductor
Up to 40 mm
Clamping range cable
35 - 95 mm²
Material
Stainless steel 316 (V4A)
Surface protection
Untreated
